IB-500 Eco
For skid steer loader
For articulated loader
For telehandler
For tractor front loader
For big wheel loader
Min oil flow:
25 L/Min
25 L/Min
Max oil flow:
60 L/Min
60 L/Min
Max Pressure:
175 Bar
175 Bar
Loader brackets:
Bolted
Bolted
Sweeper Ø500 without floating system

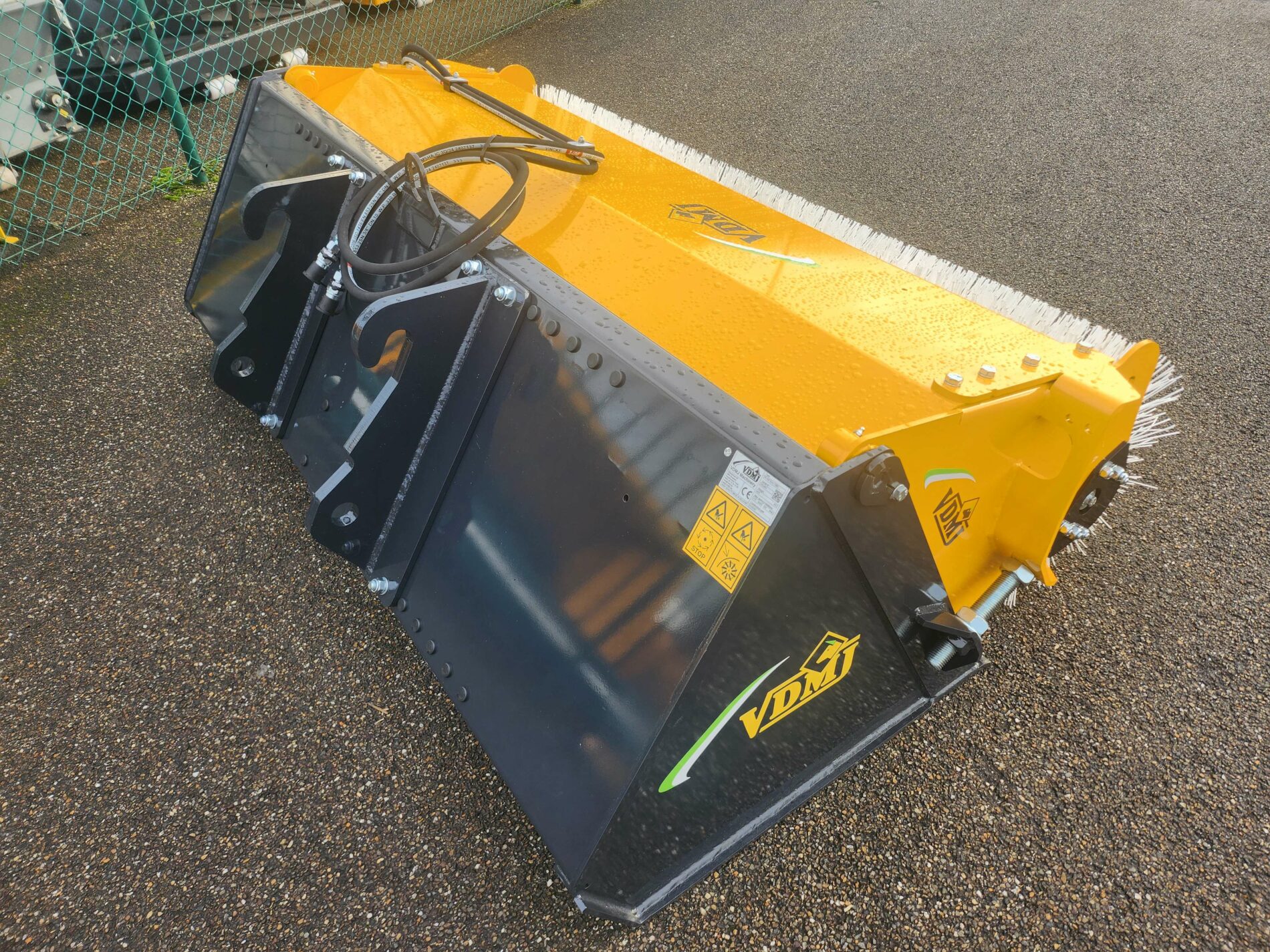

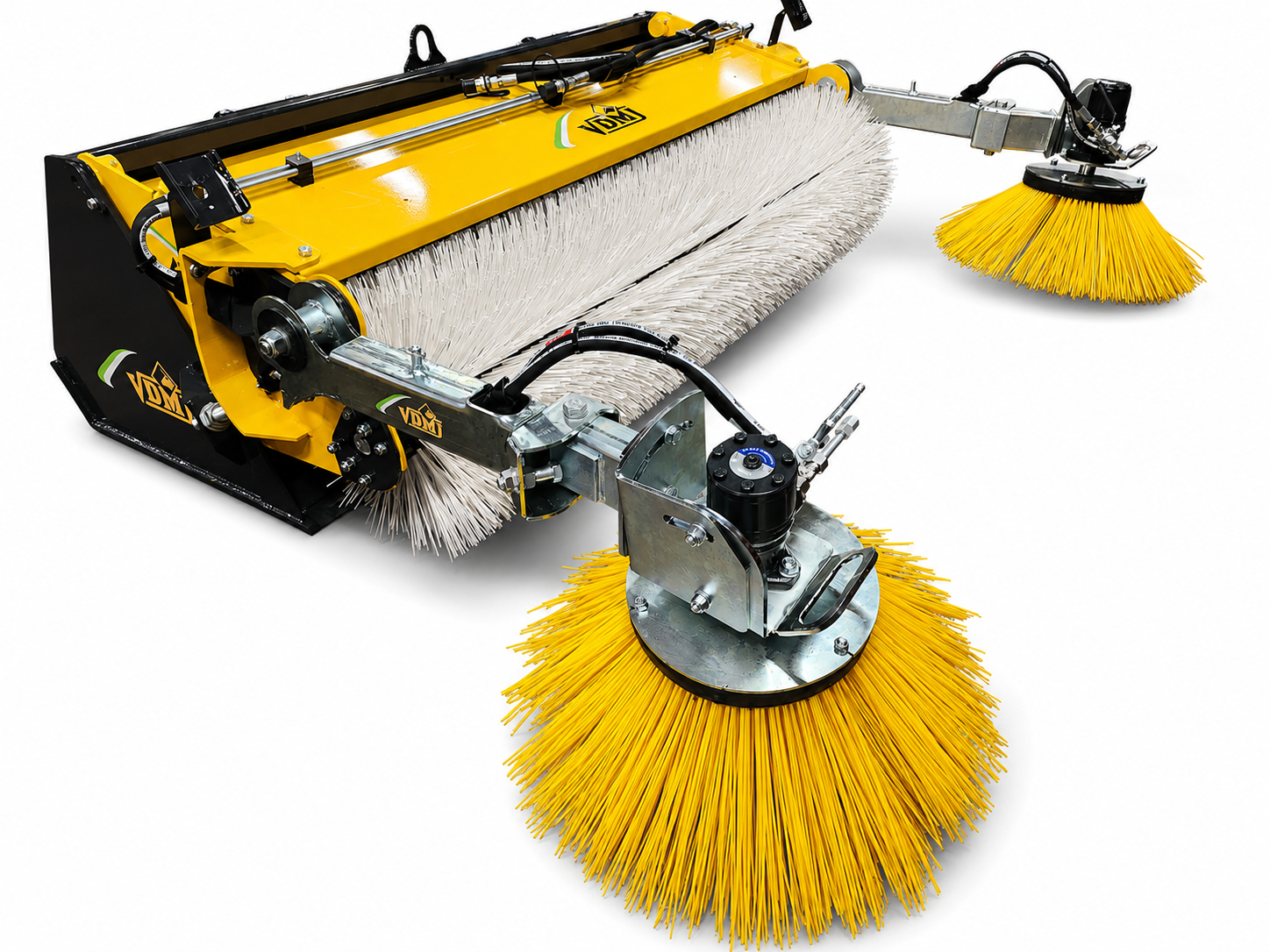

The IB-500 Eco consists of a large, very robust dirt collector with a front-mounted brush roller of 50cm diameter. The brush used on this roller is of the best quality available in the market and will give the best sweeping results. The height of the brush can be infinitely adjusted by 2 rotating spindles. The dirt collector is emptied by tipping the sweeper forward.
×
Standard
- Made of high-strength steel
- Large capacity dirt collector, wear blade Hardox 500
- Highest quality PP bristles available on the market Ø500
- The dirt collector is emptied by tipping the sweeper forward
- Infinitely variable height adjustment of the brush
| IB-500 Eco / 1100 | IB-500 Eco / 1350 | IB-500 Eco / 1600 | IB-500 Eco / 1900 | IB-500 Eco / 2100 | IB-500 Eco / 2350 | |
| Working width /m | 1,10 | 1,35 | 1,60 | 1,90 | 2,10 | 2,35 |
| Total width /m | 1,30 | 1,55 | 1,80 | 2,10 | 2,30 | 2,55 |
| Volume dirt collector /l | 330 | 400 | 480 | 570 | 630 | 700 |
| Weight /kg | 330 | 360 | 390 | 420 | 450 | 480 |
| Price (excl. VAT) | On request | On request | On request | On request | On request | On request |
