AG Eco

loader For skid steer loader
loader For articulated loader
loader For tractor front loader
Max Pressure:
200 Bar
Suited for:
Straw, Hay, Haylage, Baled corn
Loader brackets:
Bolted

Bale Clamp for round bales

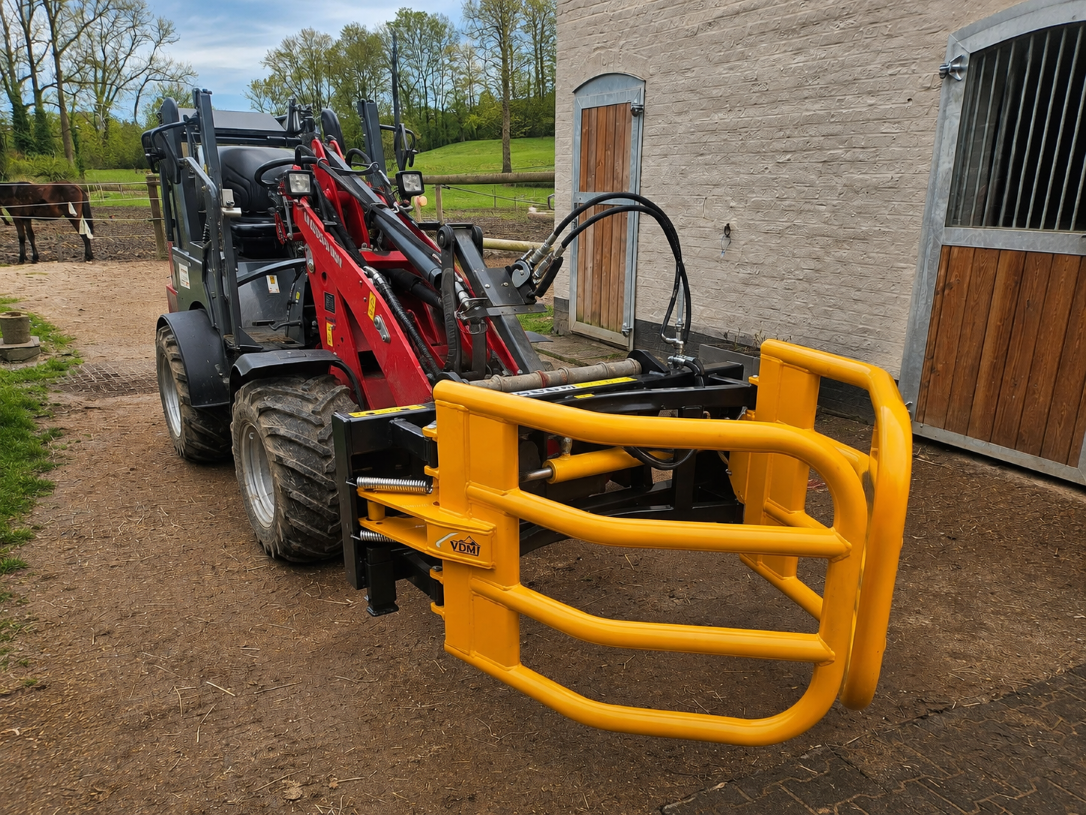

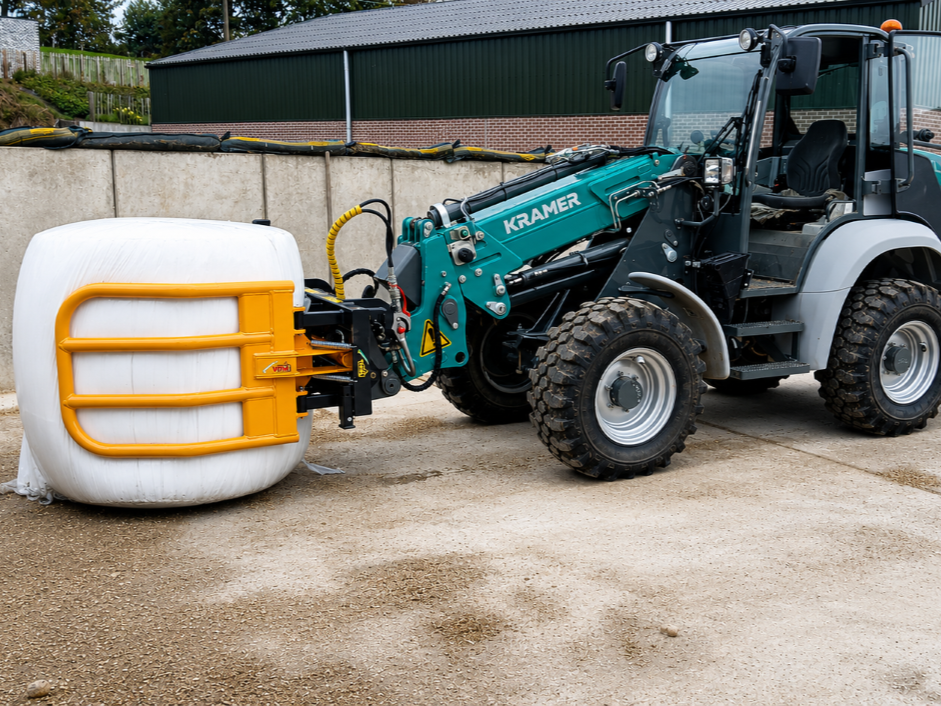

The AG Eco is a bale clamp for round bales. The smallest clamping range is 0.80m, the biggest clamping range is 1.85m. This clamp is typically used on articulated loaders, skid-steer loaders or front loaders. The load capacity is 1000kg.

Standard

Clamping range closed /m 0,80
Clamping range open /m 1,85
Bracket dimension L x H /m  1,10 x 0,70
Overall width when closed /m 1,10
Capacity /kg 1000
Weight /kg 190
Price (excl. VAT) On request

Options

Non-return valve (for loaders with open hydraulic centre position)
Pressure relief valve (if 200 bar < P)
