AH-60

loader For skid steer loader
loader For articulated loader
loader For tractor front loader
Max Pressure:
200 Bar
Suited for:
Straw, Hay, Haylage, Baled corn
Loader brackets:
Welded

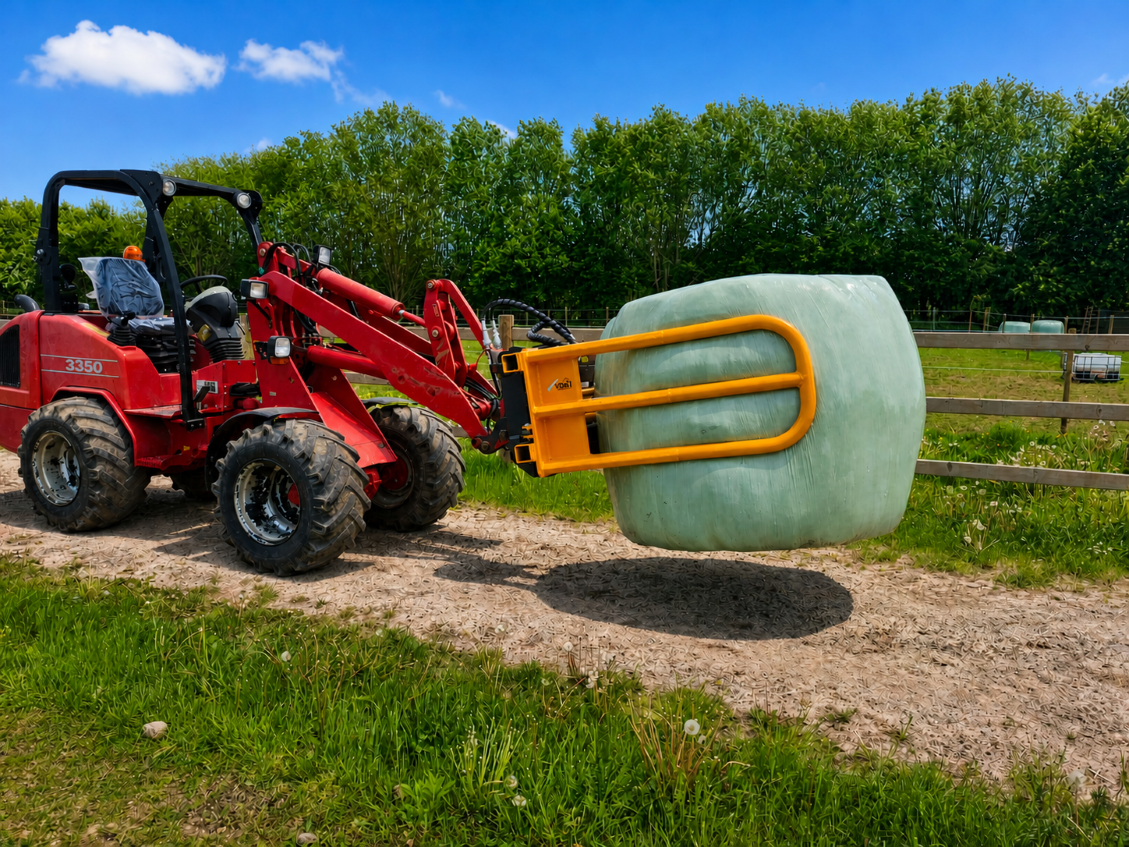

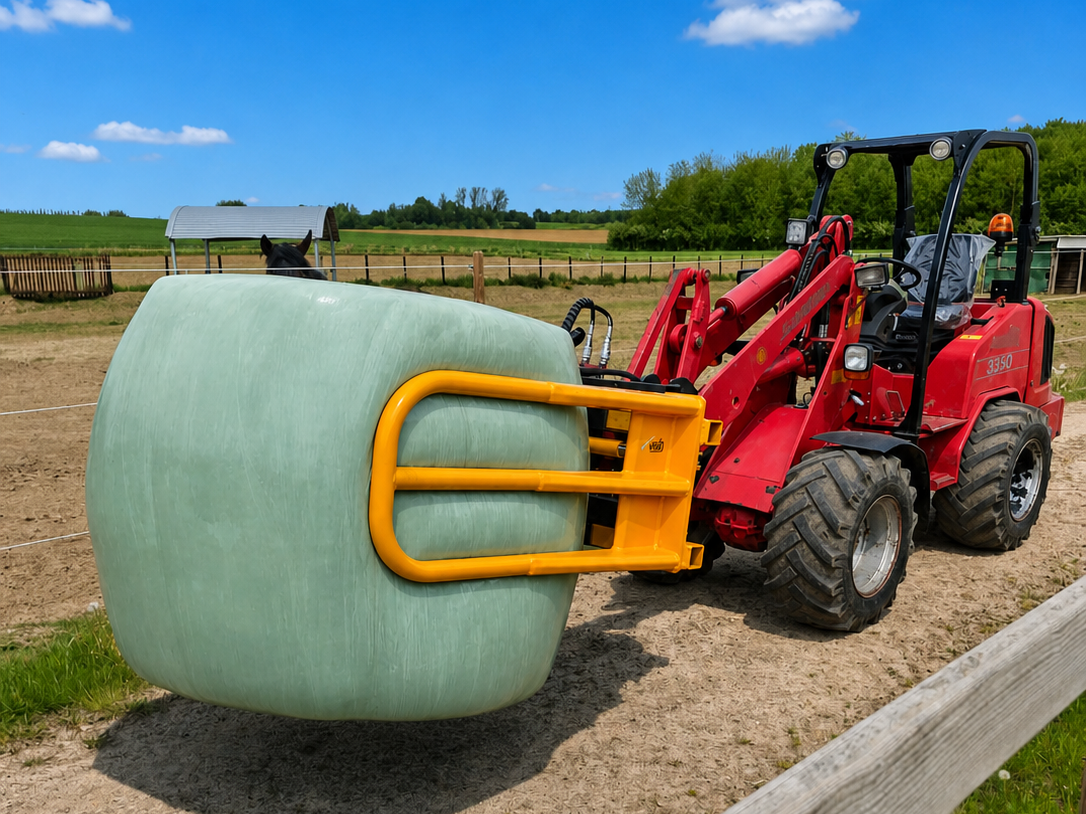

Bale Clamp for round & square bales

The AH-60 bale clamp is equipped with a bracket consisting of 3 tubes of diameter 60 mm. On the sides of the brackets there are extra corners that provide more strength and a longer life span. When the clamp is closed, the opening is 70cm, when the clamp is fully open the opening is 2.10m. The load capacity of the AH-60 is 1000kg.

Standard

Clamping range closed /m 0,70
Clamping range open /m 2,10
Bracket diameter /mm Ø 60
Bracket dimension L x H /m 1,18 x 0,56
Overall width when closed /mm 1,10
Capacity /kg 1000
Weight /kg 300
Price (excl. VAT) On request

Options

Bolted loader brackets instead of welded
Flow splitter for oil flow rate up to 100 l/min (for evenly opening the left and right bracket)
Flow splitter for oil flow rate up to 105 l/min (for evenly opening the left and right bracket)
Non-return valve (for loaders with open hydraulic centre position)
Pressure relief valve (if 225 bar < P)
