BMH

loader For skid steer loader
loader For articulated loader
loader For telehandler
loader For tractor front loader
loader For tractor backlift
loader For big wheel loader
Min oil flow:
40 L/Min
Max oil flow:
75 or 125 (depending on width) L/Min
Max Pressure:
210 Bar
Suited for:
Beets
Loader brackets:
Bolted

Hydraulic Beet Cleaner & Chopper

The BMH is a beet bucket that cleans and cuts beet. This machine is available in 3 widths: 1.80m, 2.15m and 2.60m. Depending on the size, this bucket can be used in combination with articulated loaders, bulldozers, front loaders, telehandlers, but also in the rear lift of the tractor.

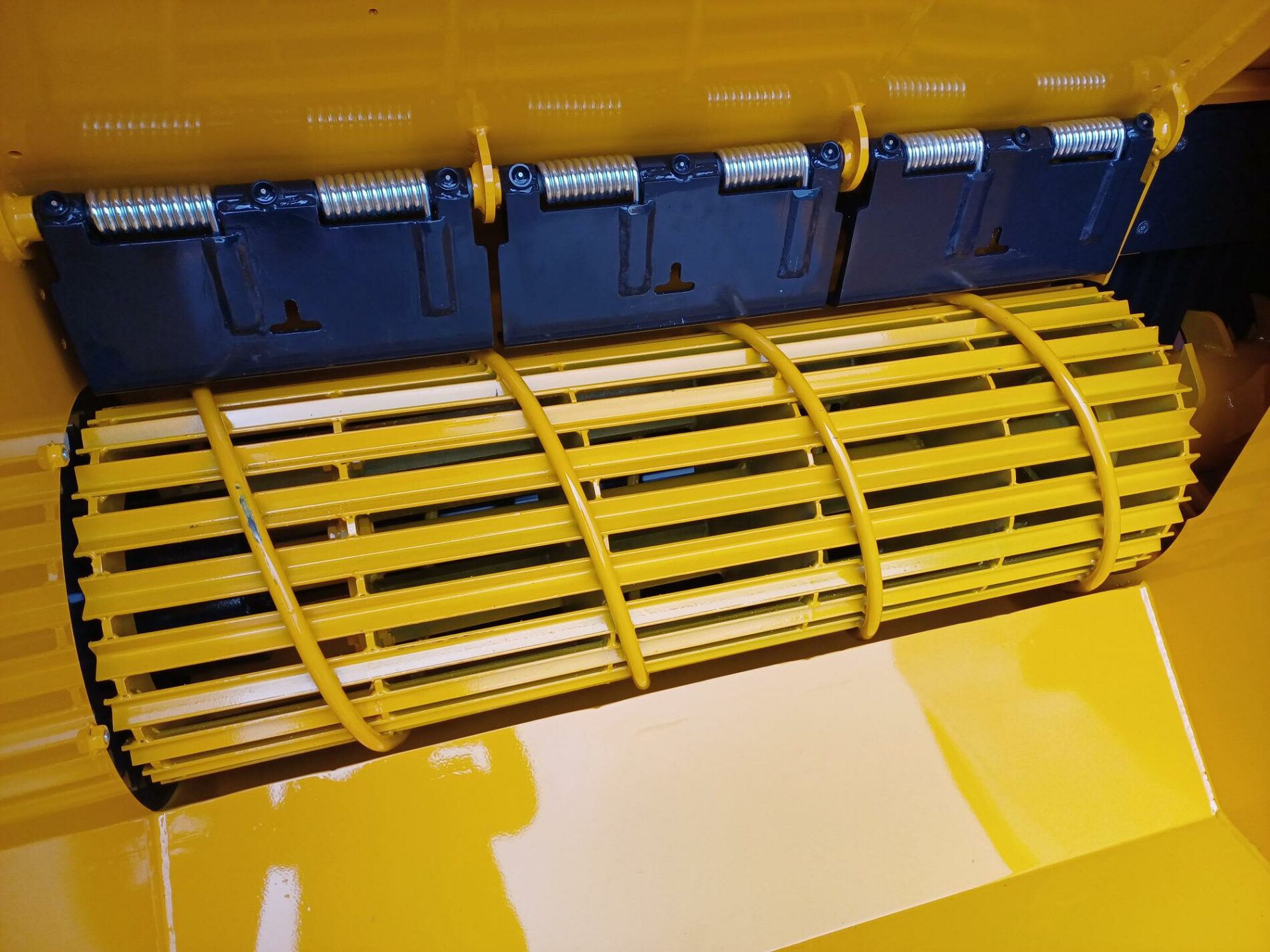

The machine consists of a large drum roller that removes the dirt. The dirt is then collected in a collector at the bottom of the chassis. This collector can be emptied simply by tilting the machine forward (without any additional controls). The cutting mill is located on the left side of the machine and can discharge the beet directly into the stable feed troughs, feed alley, wheelbarrow or into the mixing wagon.

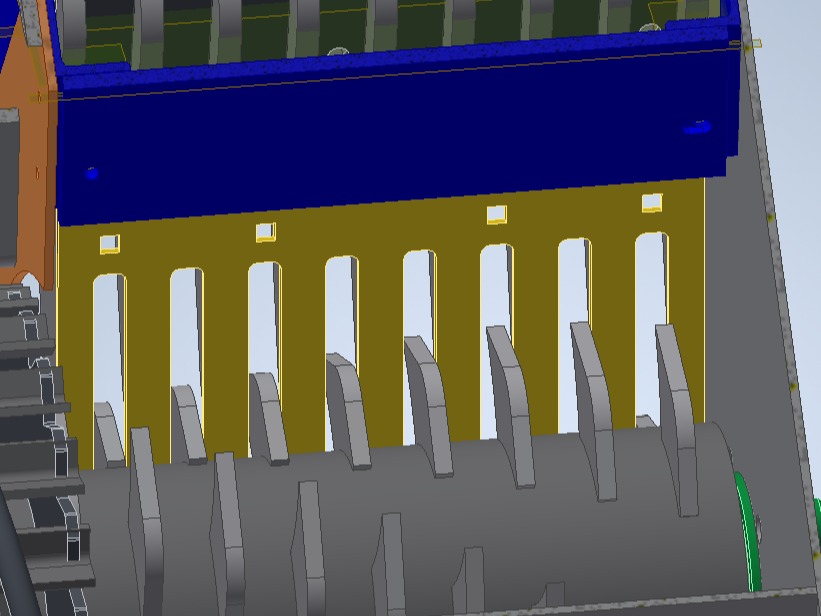

The counter blade of the cutting mill is equipped with a hydraulic stone protection as standard. This will open very briefly (1 second) and close again immediately if there is a stone in the cutting mill.

If there are a lot of stones between the beets, it is advisable to also take a stone protection device above the drum roll.

Standard

  • Hydraulically driven
  • Cutting mill standard on the left side
  • Cutting mill is fitted with hydraulic stone protection as standard
BMH3-1800 BMH3-2150 BMH2-2580
Total width /m 1,80 2,15 2,58
Volume /l 1150 1600 2100
Weight /kg 730 960 1090
Possible 3 point linkage for tractor? No Yes Yes
Price (excl. VAT) On request On request On request



Options

Right hand release instead of left hand release
Stone protection device above the drum roll
3 point linkage for tractor, incl. hydraulic emptying of stainless steel dustbin, incl. alarm for open dustbin
