BMT

For skid steer loader
For articulated loader
For telehandler
For tractor front loader
For tractor backlift
For big wheel loader
Min oil flow:
30 L/Min
Max oil flow:
75 or 125 (depending on width) L/Min
Max Pressure:
210 Bar
Suited for:
Beets, Potatoes
Loader brackets:
Bolted

Hydraulic Beet & Potato Chopper

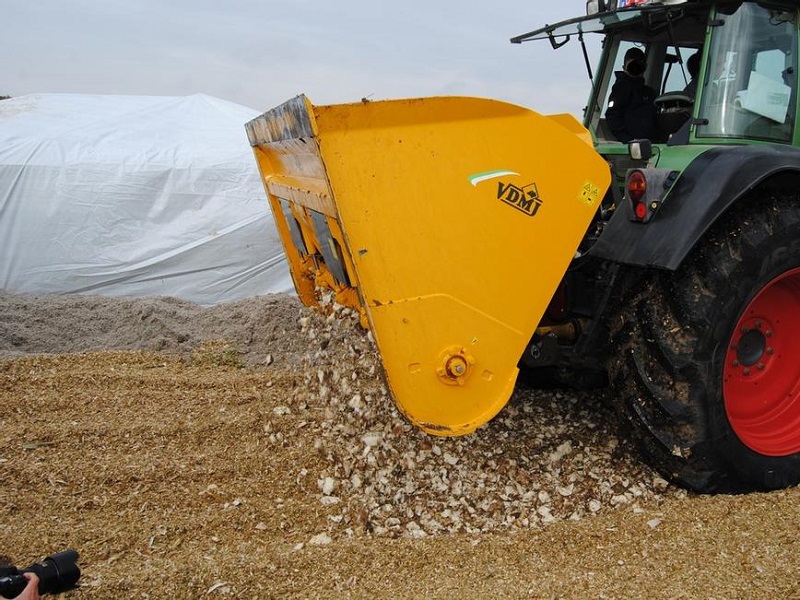

The BMT is a beet cutting bucket that is available in 3 widths: 1.37m, 1.91m and 2.45m. Depending on the size, this bucket can be used in combination with articulated loaders, bulldozers, front loaders, telehandlers, but also in the rear lift of the tractor. This beet bucket has a hydraulically driven cutting roller over the full width, which enables it to cut beet at high speed. As a standard, the cutting roller is equipped with mechanically adjustable counter blades. Optionally, the counter blades can be equipped with a hydraulic stone protection. This will open briefly (1 second) and close again immediately if there is a stone in the cutting mill.

Another option worth mentioning is the potato cutting kit: with this option, potatoes can be cut as well as beets.

Standard

  • Hydraulically driven
  • Full width cutting roll
  • The cutting roller is fitted with mechanically adjustable counter blades
BMT-1370 BMT-1910 BMT-2450
Total width /m 1,37 1,91 2,45
Cutting width /m 1,11 1,65 2,20
Volume /l 1000 1500 2000
Weight /kg 650 860 1075
Possible 3 point linkage for tractor? No Yes Yes
Price (excl. VAT) On request On request On request



Options

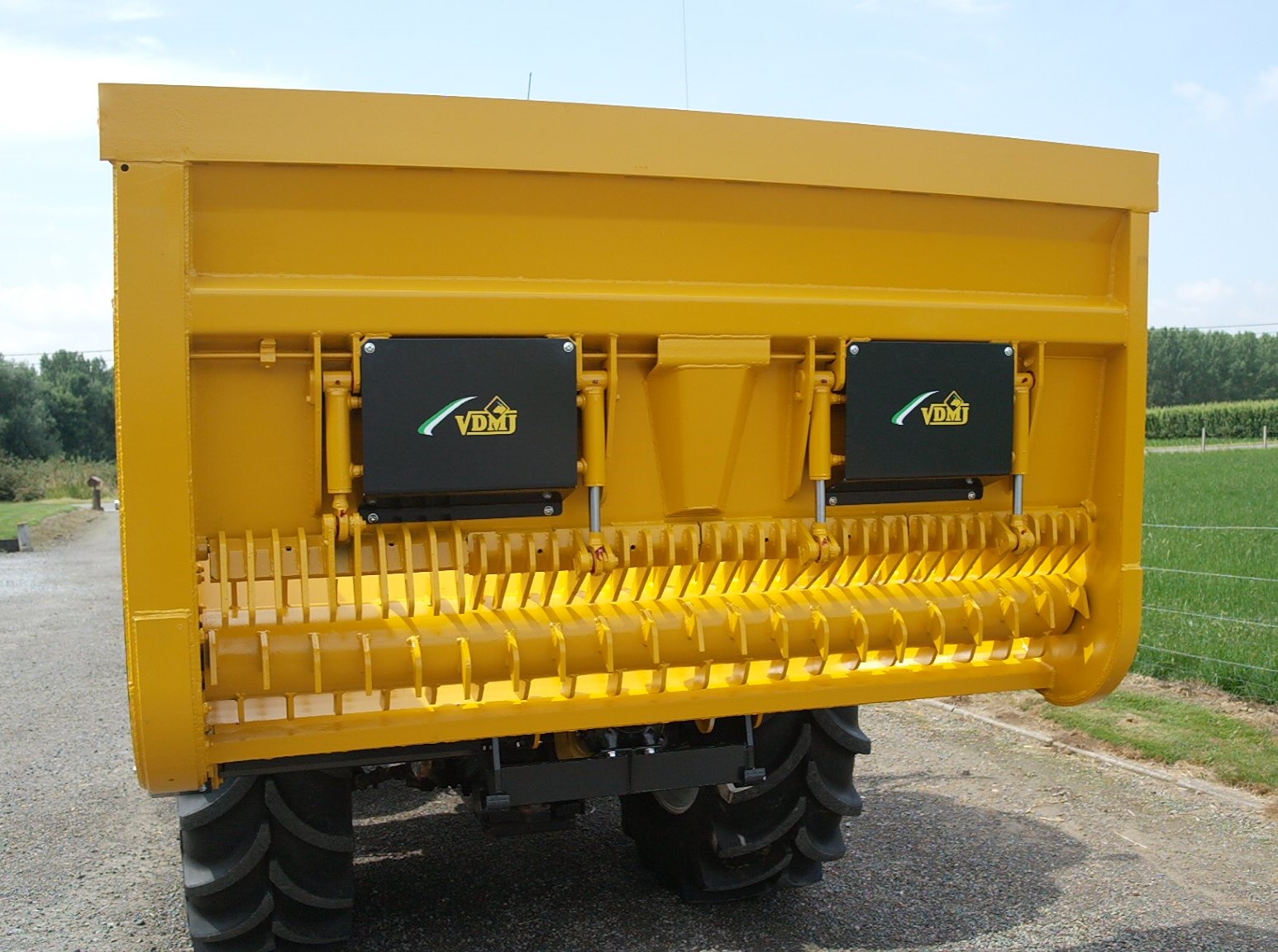

  • Hydraulic stone protection

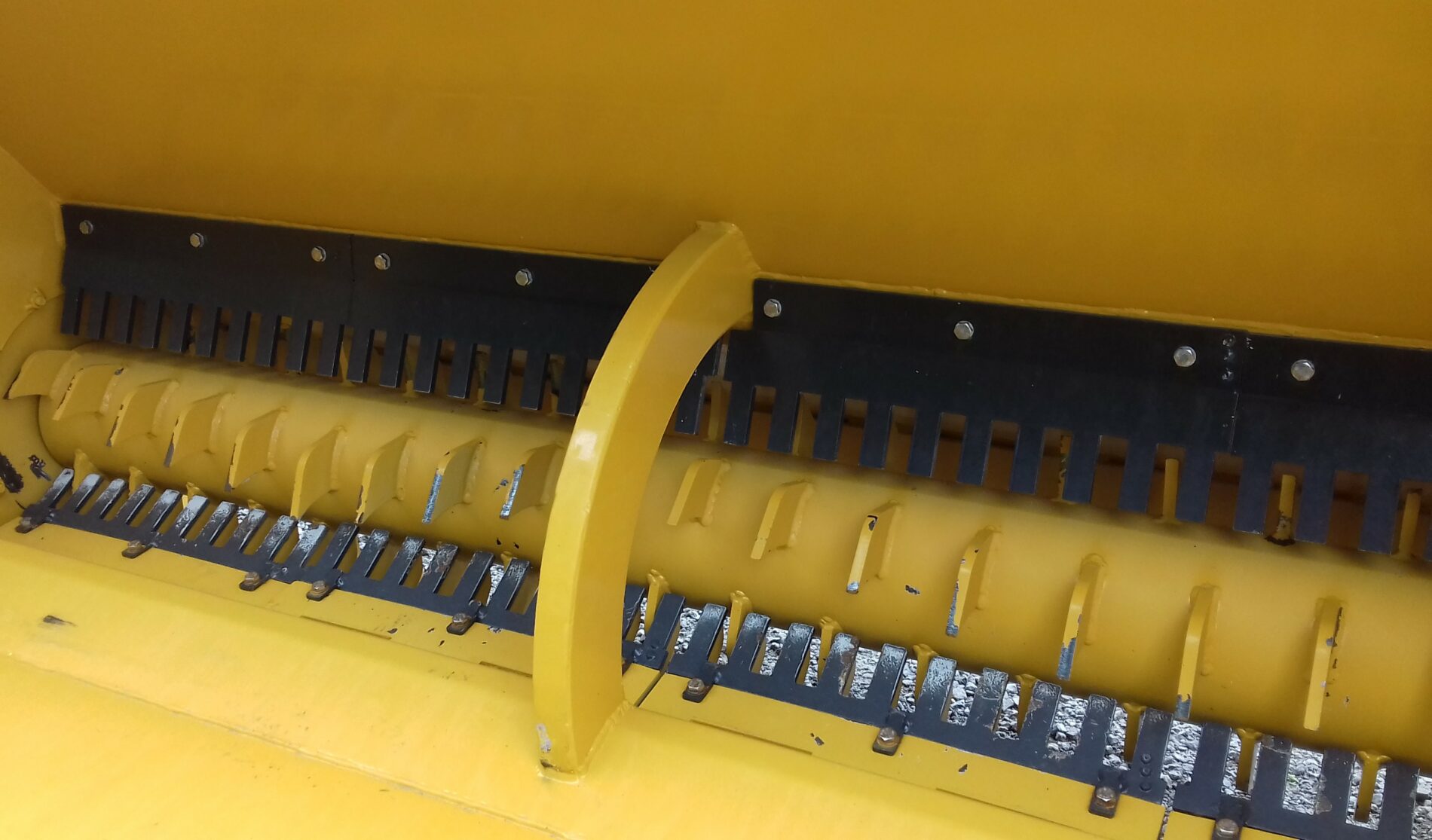

  • Potato cutting kit

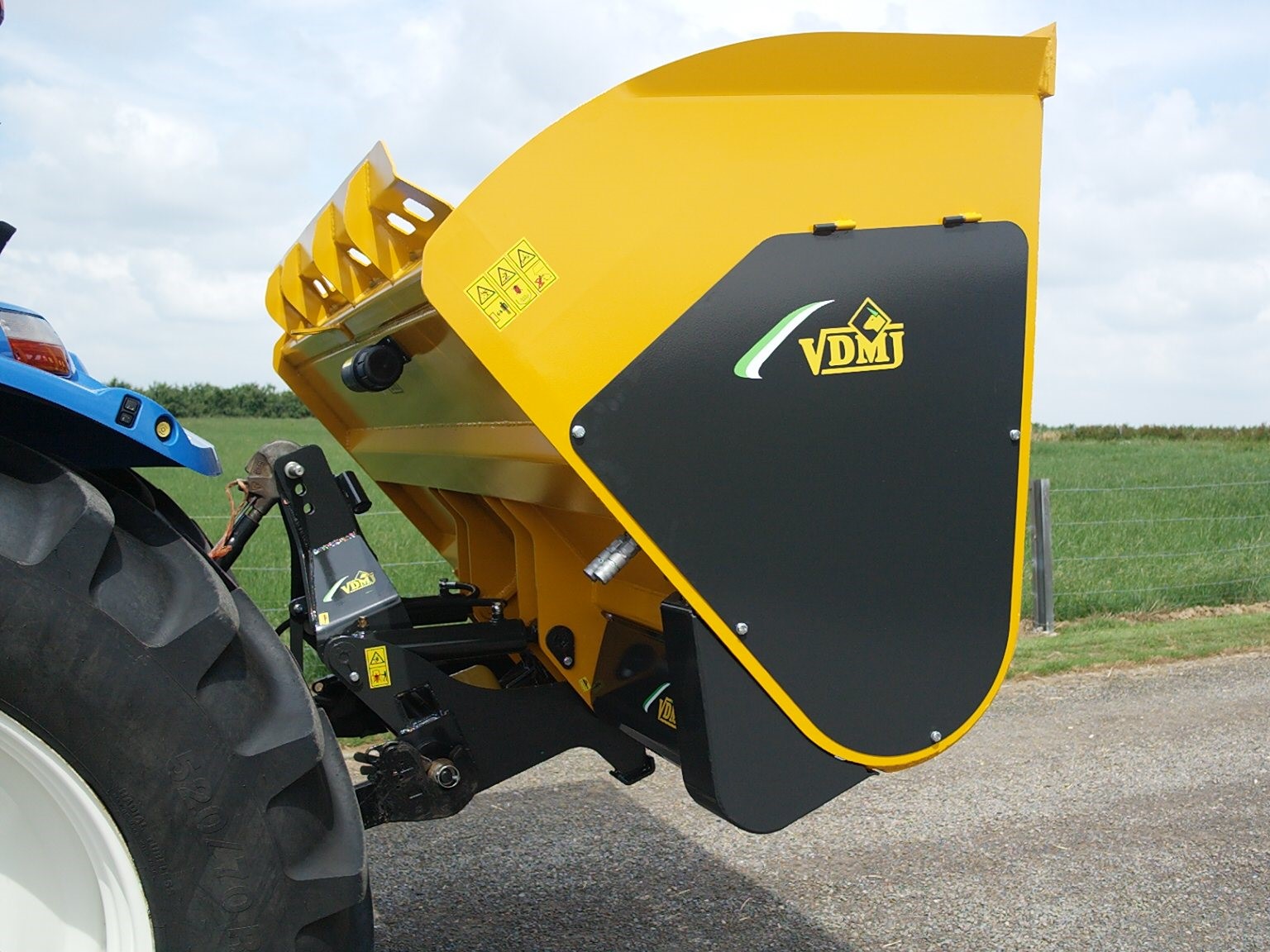

  • 3 point linkage for tractor (not possible with BMT-1370)

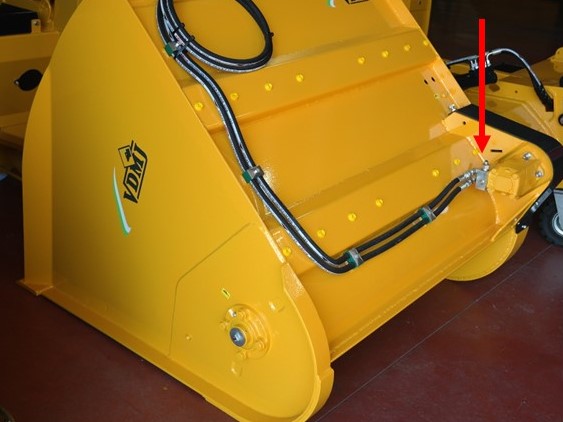

  • Pressure relief valve on motor (recommended for standard mechanically adjustable counter blades)
