EV-150
For skid steer loader
For articulated loader
Min oil flow:
25 L/Min
25 L/Min
Max oil flow:
75 L/Min
75 L/Min
Max Pressure:
210 Bar
210 Bar
Suited for:
Concentrates, CCM
Concentrates, CCM
Loader brackets:
Welded
Welded
Auger Bucket for concentrates -> 1 side exit

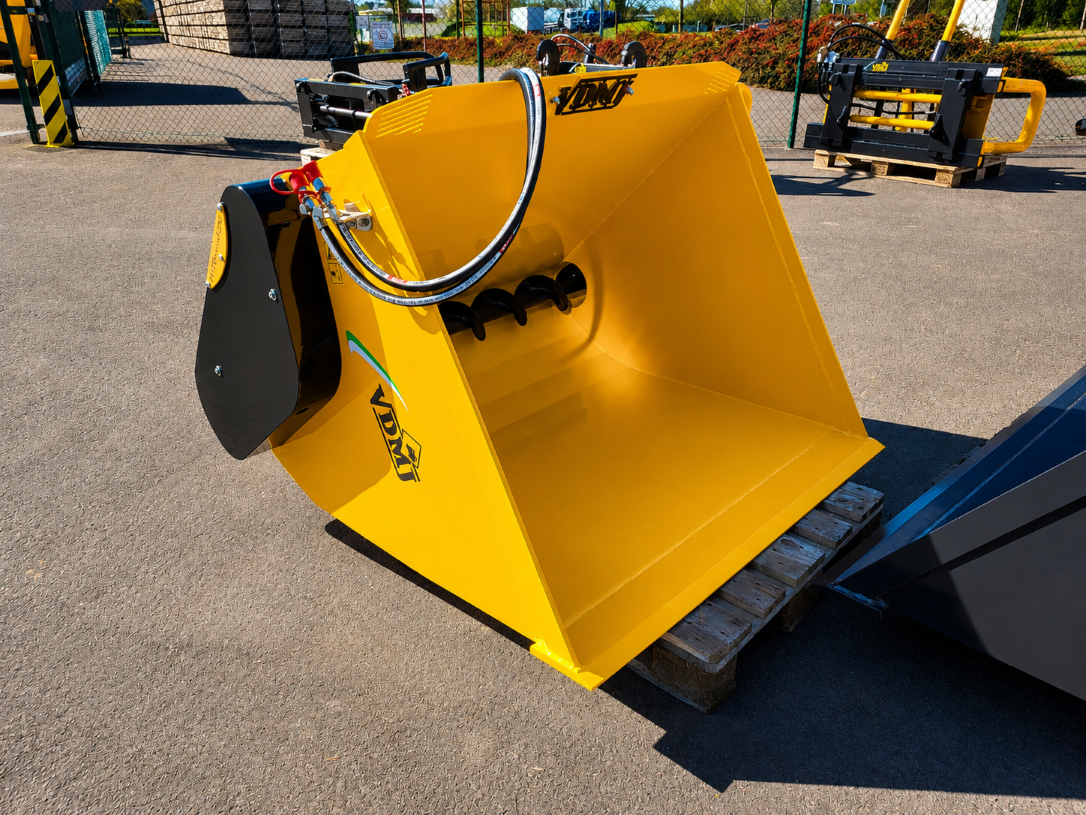

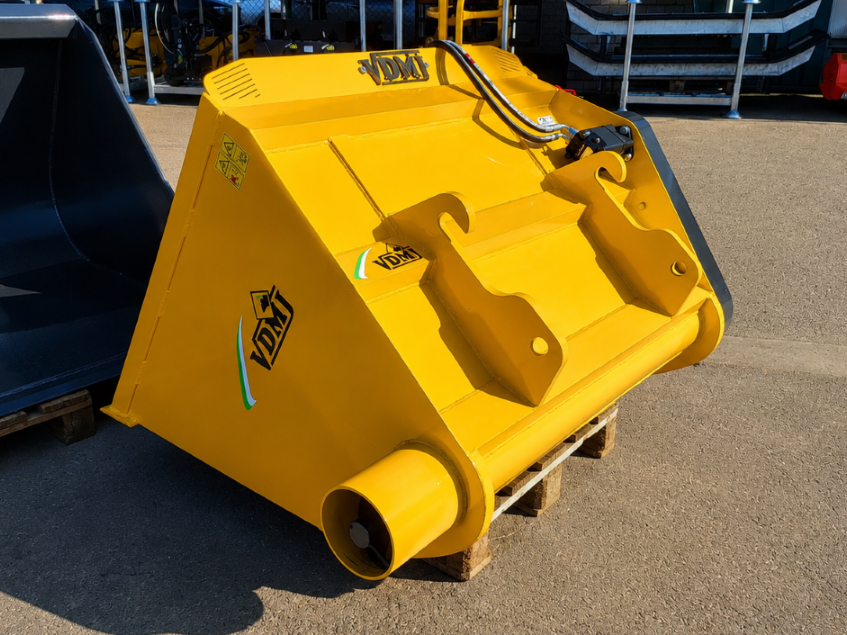

The EV-150 is the smallest of the VDMJ feeders. This simple machine is used for distributing concentrates & CCM (short meal products). The screw auger has a diameter of only 15 cm, allowing extremely accurate dosing of concentrate feed. The bucket can be provided with a door at the exit that prevents feed from falling out during transport.
×
Standard
- Distribution of concentrates
- 1 Auger Ø150
- Driven by hydraulic motor and single chain 1″ reinforced on hardened sprockets
- Exit left OR right
| EV-150 / 1100 | EV-150 / 1300 | EV-150 / 1500 | EV-150 / 1700 | EV-150 / 1900 | |
| Scoop width /m | 0,80 | 1,00 | 1,20 | 1,40 | 1,60 |
| Total width /m | 1,10 | 1,30 | 1,50 | 1,70 | 1,90 |
| Volume /m³ | 0,50 | 0,60 | 0,70 | 0,80 | 0,90 |
| Weight /kg | 200 | 225 | 250 | 275 | 300 |
| Price (excl. VAT) | On request | On request | On request | On request | On request |
