IB-600 Clean Expert

For skid steer loader
For articulated loader
For forklift
For telehandler
For tractor front loader
For tractor frontlift
For big wheel loader
Min oil flow:
40 L/Min
Max oil flow:
75 L/Min
Max Pressure:
210 Bar
Loader brackets:
Bolted

Sweeper Ø600 with floating system

The IB-600 Clean Expert is a very comprehensive sweeping machine intended for professional work. The brush roller has a diameter of 60 cm and is driven by a built-in heavy duty motor. This motor is standard also equipped with a motor protection valve (life of the motor extended by 5 to 10 years). What makes this sweeper very popular is the fact that it can sweep the dirt into the collector, but it is also possible to open the collector completely, place the machine at an angle of 20° (both left and right) and sweep the dirt sideways. Finally, the machine is also equipped with a 3D floating device as standard (except on the frontlift of a tractor).

Other advantages are

  • The corners of the dirt collector are bevelled, minimising collisions with walls, embroidery, etc
  • Rubber seal on top of the collector to keep dirt and dust inside
  • Rubber bottom of the collector so that no steel parts come in contact with the ground (longer life span)
  • The adjustment of the brush pressure is very fast and infinitely by 2 turning spindles on the side
  • The swivel wheels used are also heavily over-dimensioned and fitted with a full rubber tyre. All this reduces standstill losses to an absolute minimum!



Standard

  • Made of high-strength steel

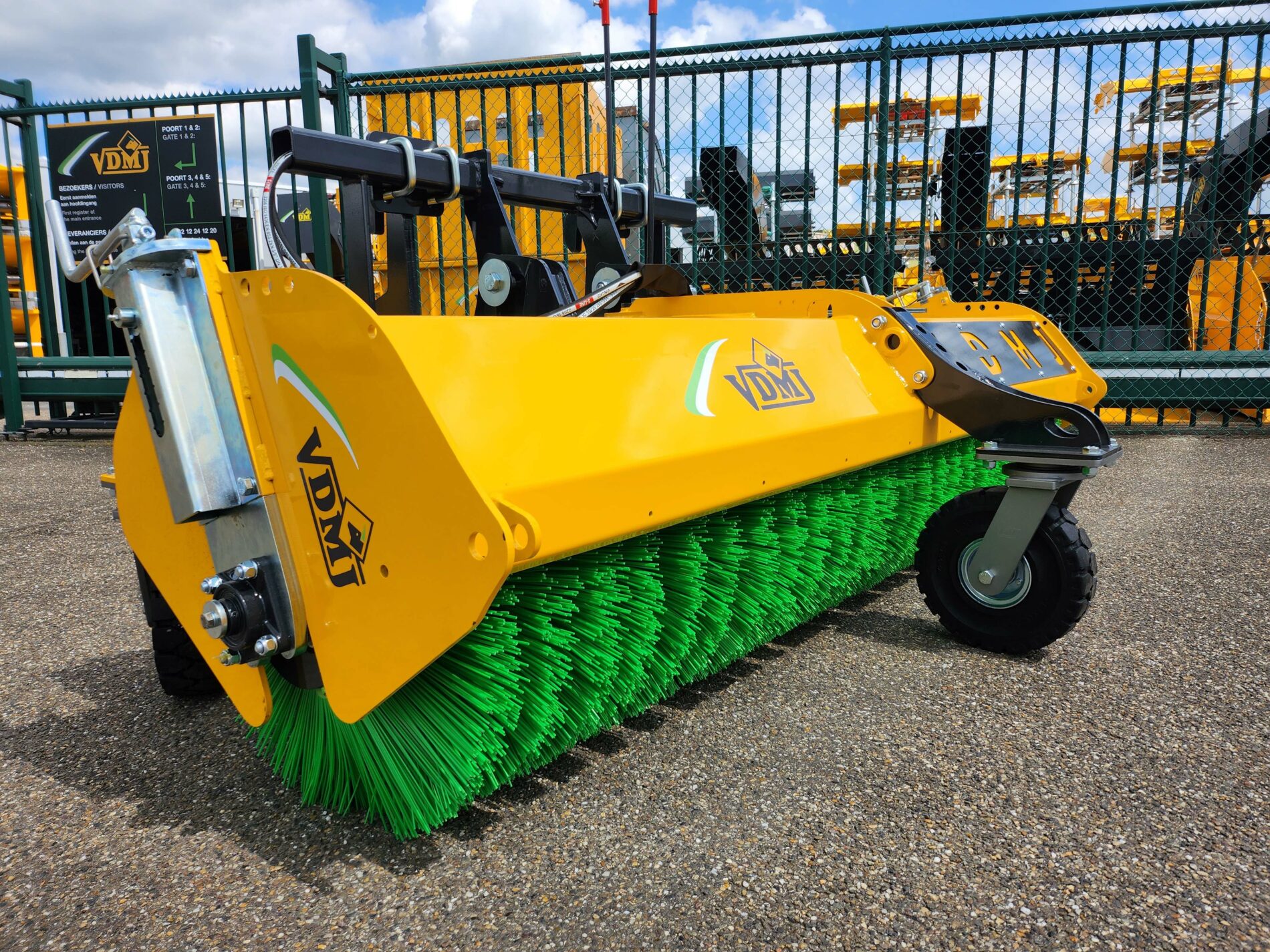

  • Without dirt collector as standard
  • Highest quality PP bristles available on the market Ø600
  • 2 swivel castors with solid rubber tyres dia 300×90 mm ‘HEAVY DUTY’
  • Wear-resistant rubber at the bottom of the collection container for an undamaged surface and a longer life span of the machine
  • Rubber seal on top of the collector to keep dust/dirt in the hopper
  • Heavy duty motor with motor protection valve fitted as standard (motor life + 5-10yrs)
  • The adjustment of the brush pressure is very fast and infinitely by 2 turning spindles on the side

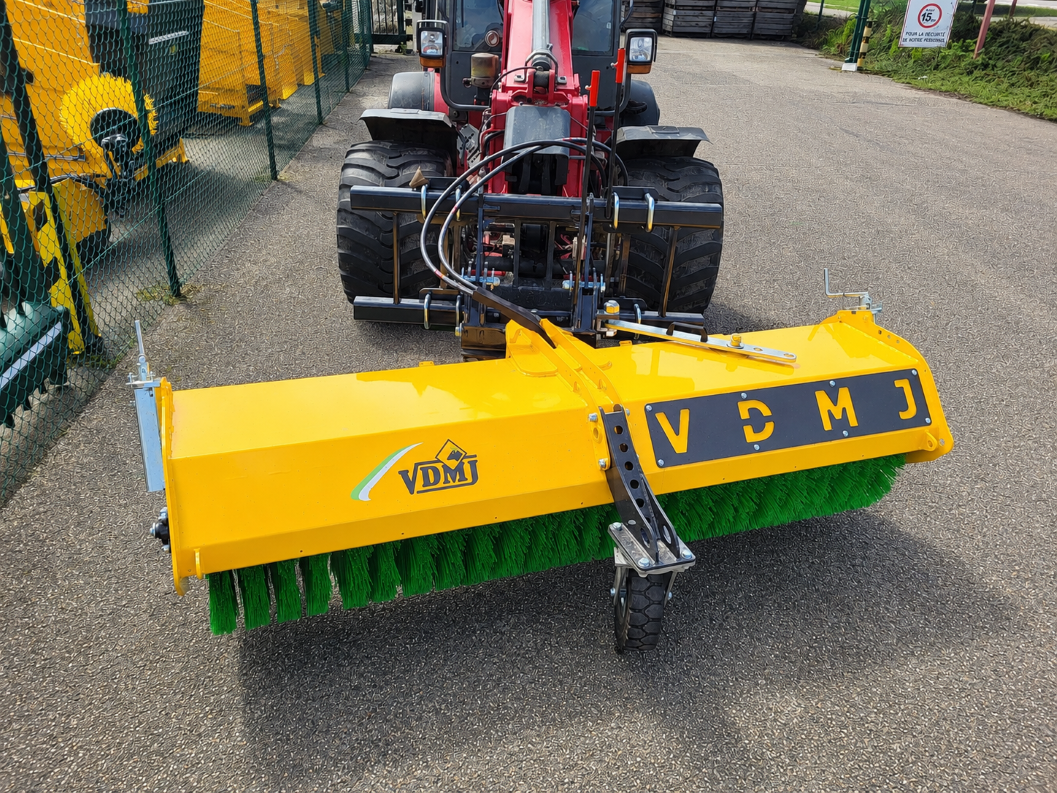

  • Standard with mechanical inclination adjustment +/- 20
  • Standard with floating system for uneven surfaces



IB-600 / 1900 IB-600 / 2300 IB-600 / 2500 IB-600 / 2750
Working width /m 1,90 2,30 2,50 2,75
Total width /m 2,15 2,55 2,75 3,00
Volume dirt collector /l 240 290 310 340
Weight without dirt collector /kg 385 450 475 505
Weight with dirt collector /kg 565 620 650 685
Price (excl. VAT) On request On request On request On request



Options

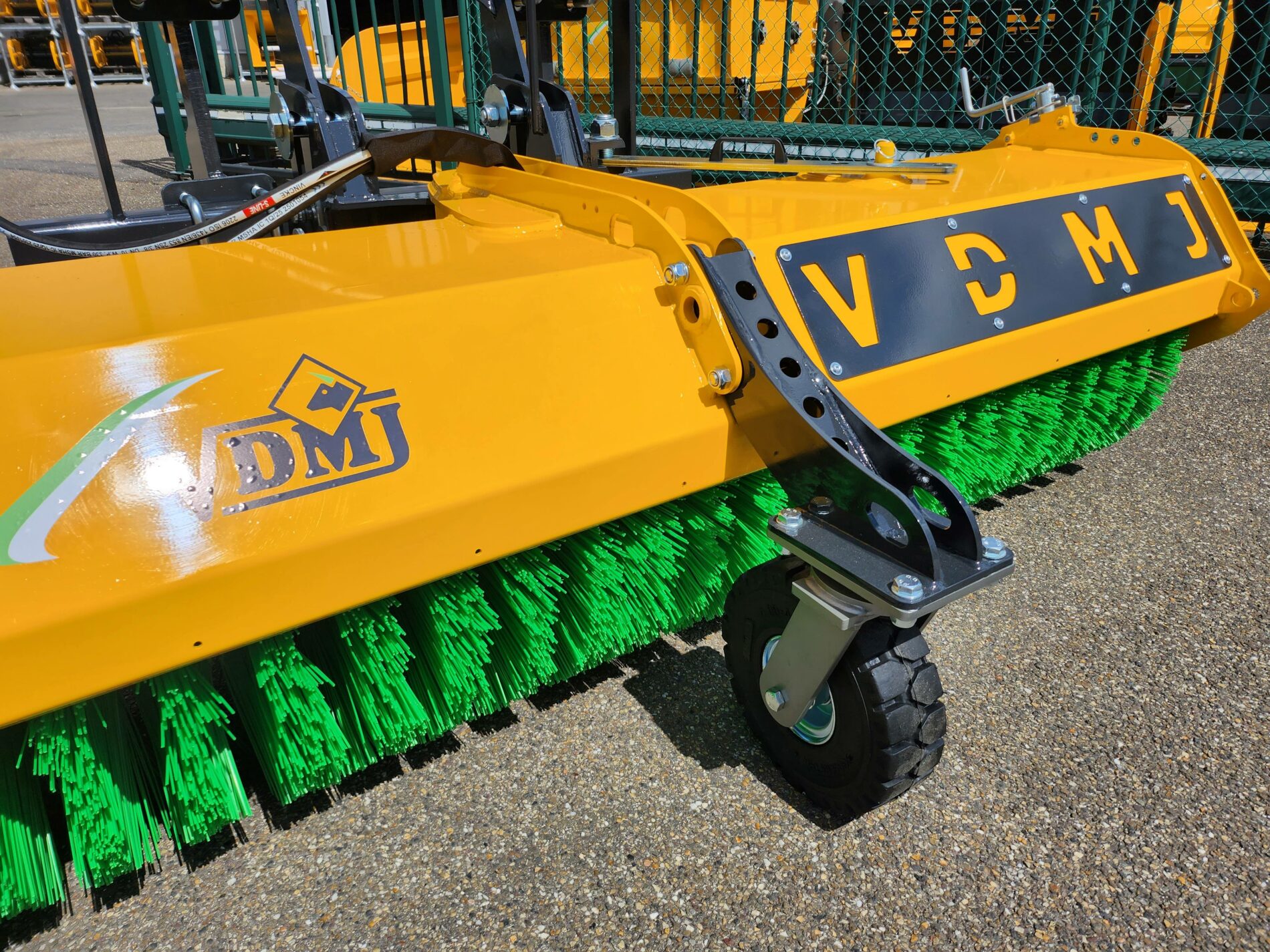

  • 3rd nose wheel (if no dirt collector)
  • Dirt collector (hydraulic emptying)

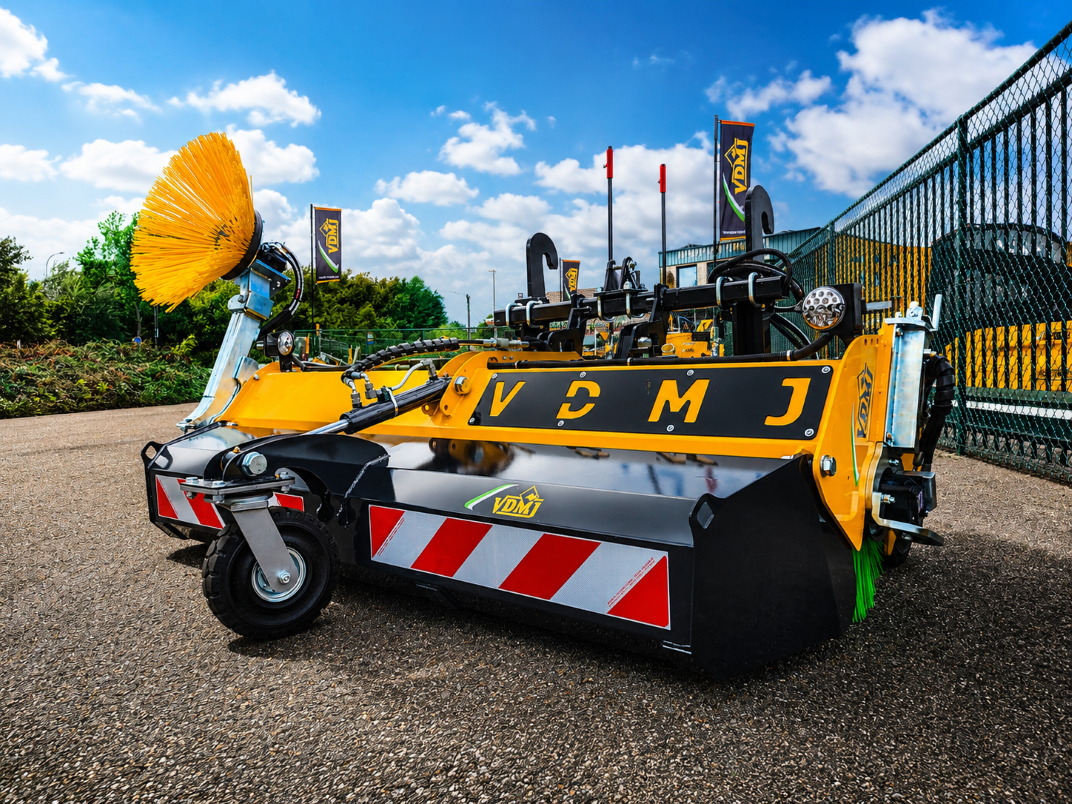

  • Side brush
  • Water spray device
  • Hydraulic inclination adjustment +/- 20 (instead of mechanical)
  • 3 point linkage (without floating device) for frontlift of tractor
