IB-770

loader For forklift
loader For telehandler
loader For tractor frontlift
loader For big wheel loader
Min oil flow:
40 L/Min
Max oil flow:
75 L/Min
Max Pressure:
210 Bar
Loader brackets:
Bolted

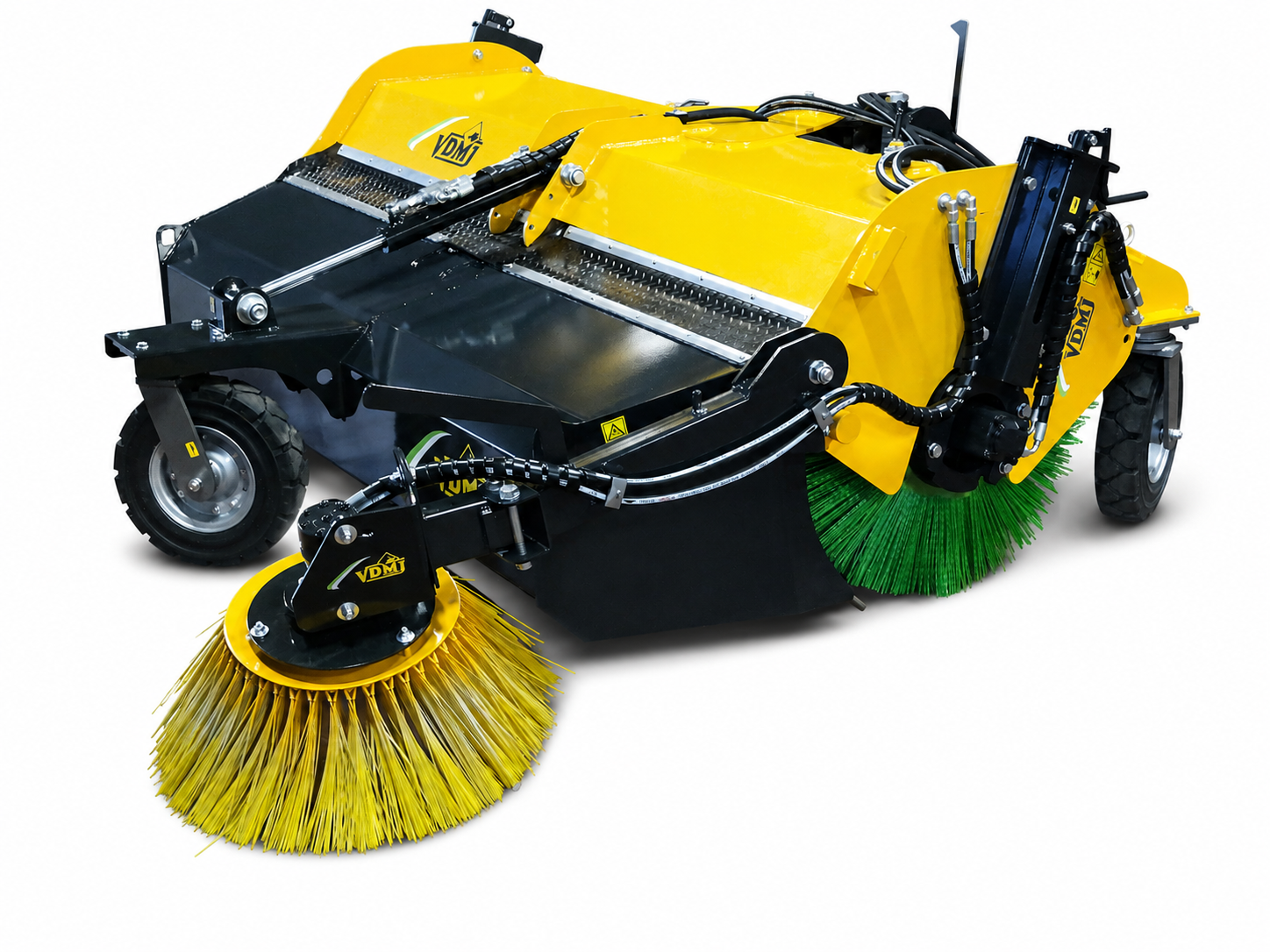

Sweeper Ø770 with floating system

The IB-770 is an extremely robust sweeping machine intended for professional use. The brush roll has a diameter of 77cm and is driven by a built-in heavy duty motor. This motor is also equipped with a motor protection valve as standard (life span of the motor is extended by 5 to 10 years). What makes this sweeper very popular is the fact that it can sweep the dirt into the collector, but it is also possible to open the collector completely, place the machine at an angle of 25° (both left and right) and sweep the dirt sideways. Finally, the machine is also equipped with a 3D floating device as standard.

Other advantages are

  • The corners of the collector are bevelled, minimising collisions with walls, embroidery, etc
  • Rubber seal on top of the collector to keep dirt and dust inside
  • Rubber bottom of the collector so that no steel parts come in contact with the ground (longer life span)
  • The adjustment of the brush pressure is very fast and infinitely by 2 turning spindles on the side
  • The swivel wheels used are also heavily over-dimensioned and fitted with a full rubber tyre. All this reduces standstill losses to an absolute minimum!



Standard

  • Made of high-strength steel
  • Without dirt collector as standard
  • Highest quality PP bristles available on the market Ø770
  • 2 swivel castors with solid rubber tyres dia 400×110 mm ‘HEAVY DUTY’
  • Wear-resistant rubber at the bottom of the collection container for an undamaged surface and a longer life span of the machine
  • Rubber seal on top of the collector to keep dust/dirt in the hopper
  • Heavy duty motor with motor protection valve fitted as standard (motor life + 5-10yrs)
  • The adjustment of the brush pressure is very fast and infinitely by 2 turning spindles on the side
  • Standard with mechanical inclination adjustment +/- 25
  • Standard with floating system for uneven surfaces



IB-770 / 2300 IB-770 / 2500 IB-770 / 2750 IB-770 / 3000
Working width /m 2,30 2,50 2,75 3,00
Total width /m 2,50 2,70 2,95 3,20
Volume dirt collector /l 475 520 575 640
Weight without dirt collector /kg 625 675 725 800
Weight with dirt collector /kg 800 850 900 1000
Price (excl. VAT) On request On request On request On request



Options

3rd nose wheel (if no dirt collector)
Dirt collector (hydraulic emptying)
Side brush
Water spray device
Hydraulic inclination adjustment (if 2 double-acting valves present on loader)
Hydraulic inclination adjustment (if 1 double-acting valve present on loader)
3 point linkage for frontlift of tractor
