SSB

loader For skid steer loader
loader For articulated loader
loader For telehandler
loader For tractor front loader
loader For big wheel loader
Min oil flow:
35 L/Min
Max oil flow:
60 L/Min
Max Pressure:
175 Bar
Suited for:
Chopped straw, Sawdust, Straw pellets, Compost, Wood shavings
Loader brackets:
Bolted

Wide Bedding Machine for wood shavings, sawdust, peat, compost, straw pallets, ...

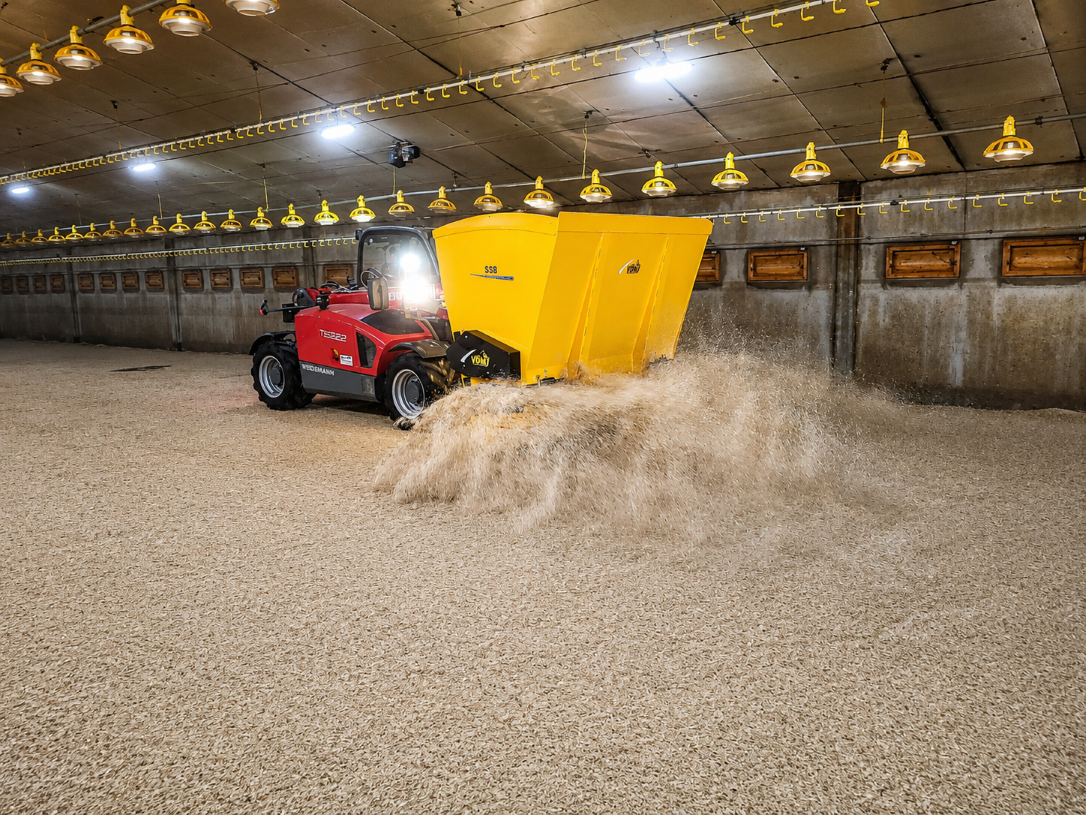

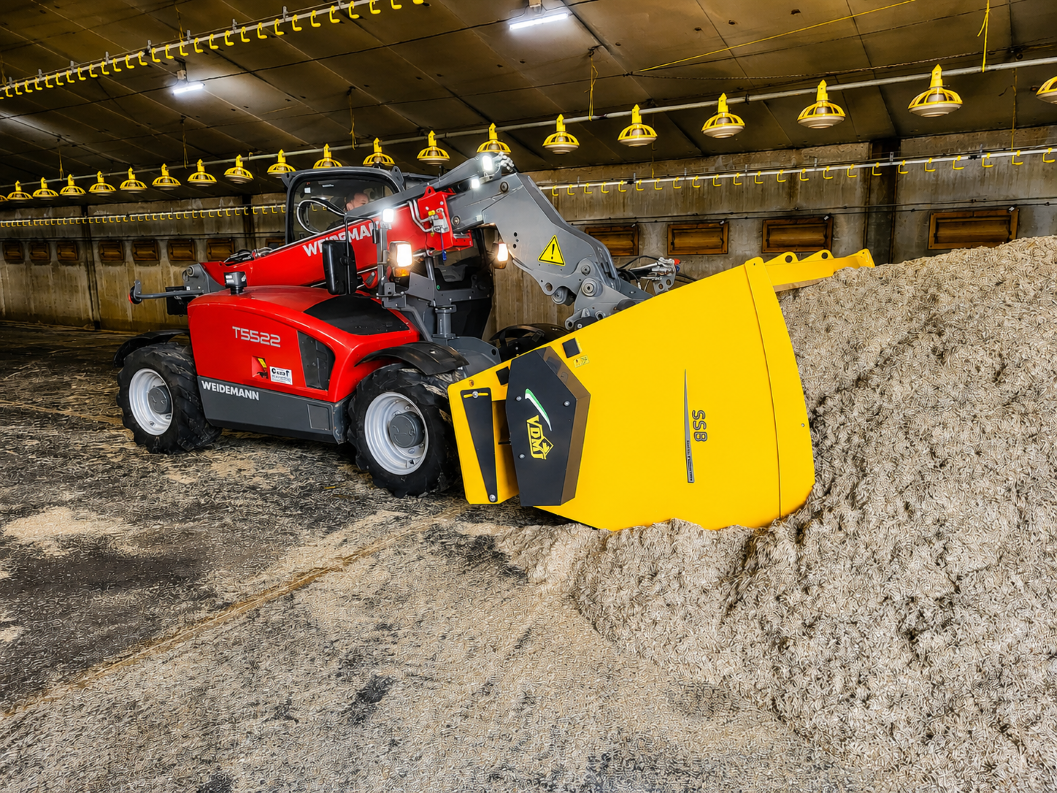

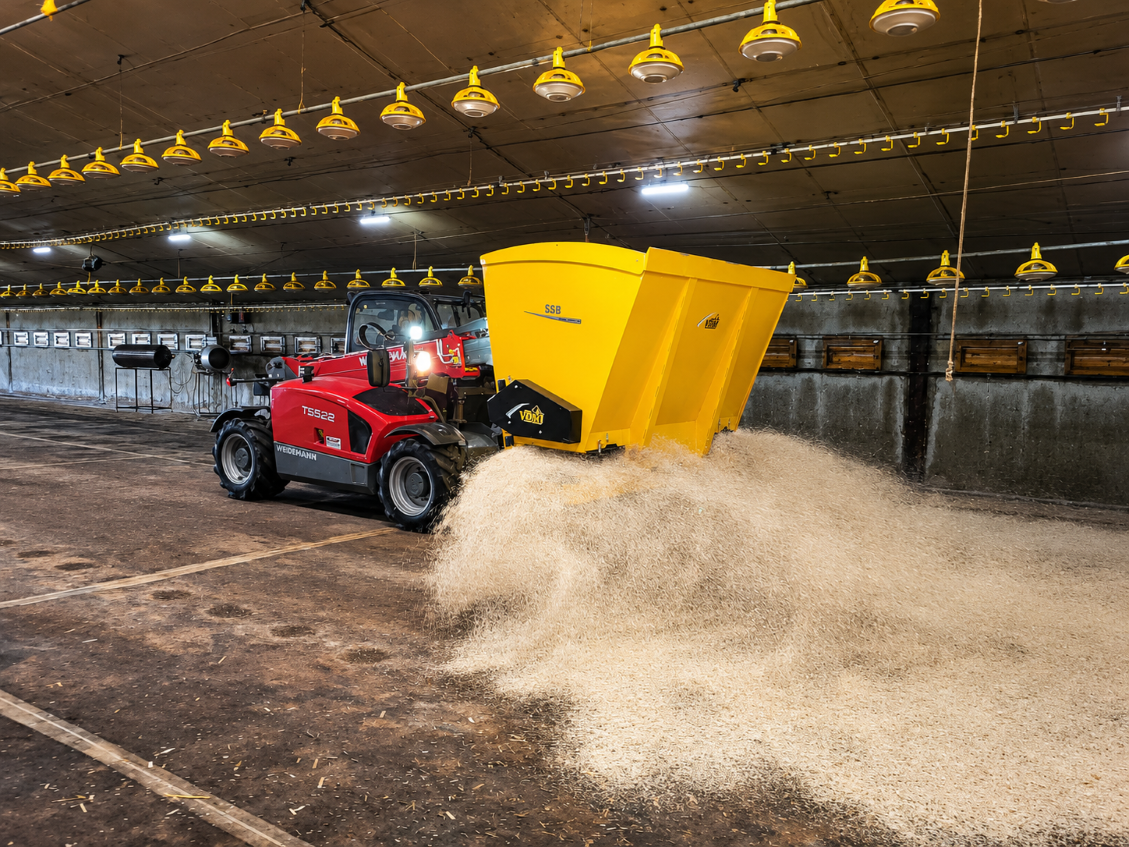

With the SSB, it is possible to quickly and efficiently spread poultry houses. Different materials such as wood shavings, sawdust, peat/compost, chopped straw, straw pellets, etc. can be processed and spread over a width of up to 7 metres (depending on the oil flow, width of the machine and spreading material). The machine requires virtually no maintenance thanks to its automatic chain tensioning system.

Both the quantity and the spreading width are adjustable.

These machines are used in chicken, duck, turkey or goose barns.

The SSB is also used in tunnel greenhouses to spread compost.

Standard

  • 2 augers at the bottom of the machine
  • The augers distribute the bedding material onto the hydraulically driven spreading discs
  • Spreading width +/- 7 m (depending on the material, width of the machine and oil flow)
  • The spreading width can be adjusted using the sliding plates next to the spreading discs
  • The layer thickness can be adjusted using the dosing slides above the spreading discs
  • The layer thickness can also be adjusted by controlling the auger speed by means of a flow control valve
  • Automatic chain tensioning system
SSB 1550 SSB 2250 SSB 2550 SSB 2550 XL
Scoop width/m 1,45 2,10 2,45 2,45
Total width /m 1,55 2,25 2,55 2,55
Volume /m³ 1,15 1,70 2,00 3,40
Weight /kg 450 775 920 1000
Price (excl. VAT) On request On request On request On request



Options

Hydraulic shut-off slide above spreading discs (recommended for straw pellets, for example)
