VMSH

loader For skid steer loader
loader For articulated loader
loader For telehandler
loader For tractor front loader
loader For big wheel loader
Max Pressure:
200 Bar
Loader brackets:
Bolted

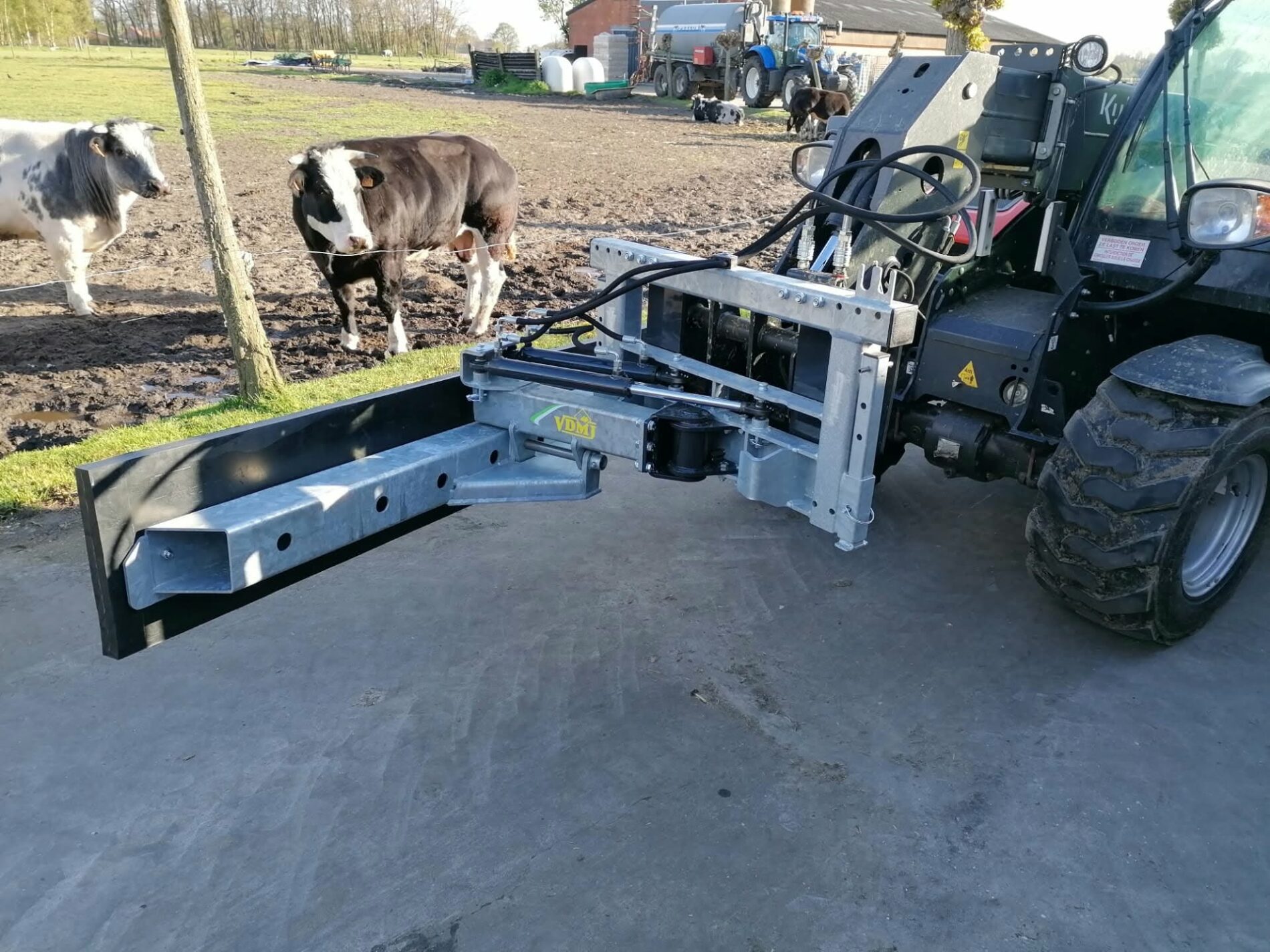

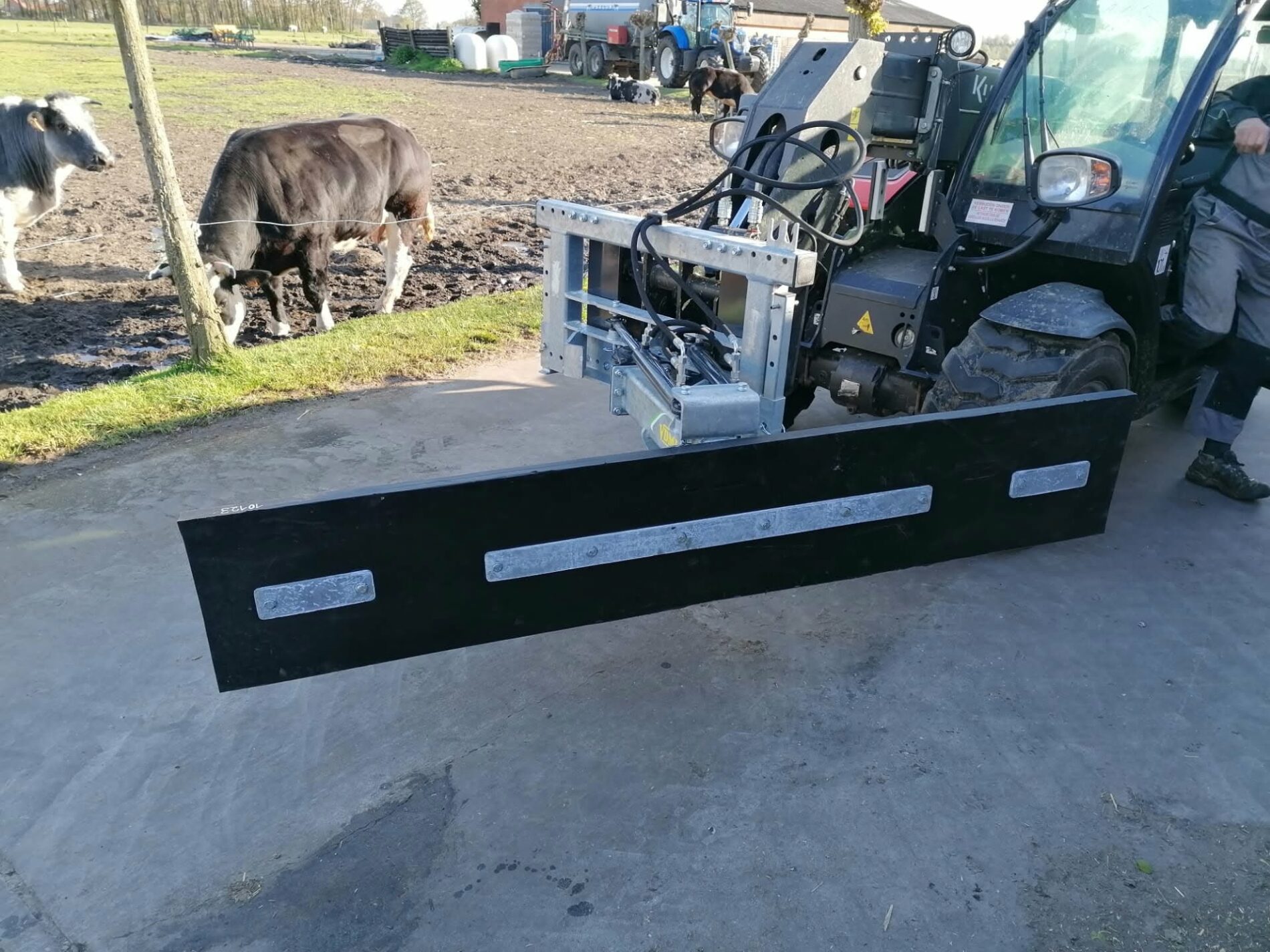

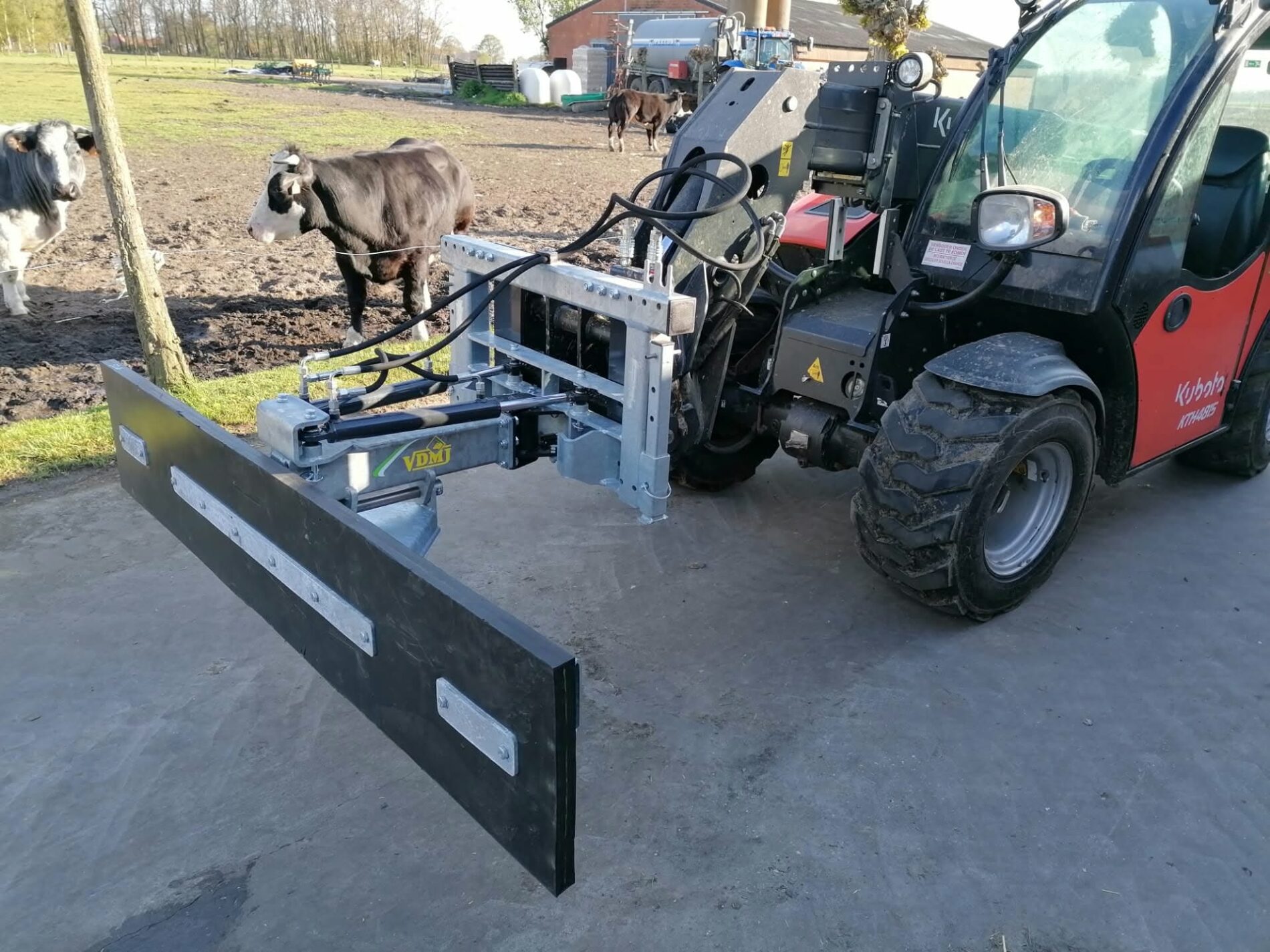

RUBBER SCRAPER - Hydraulic adjustable

This VDMJ rubber scraper is classically used for pushing feed into the feeding trough. Also for scraping mud, dirt, snow, wood chippings, recycling products, etc. This version is adjustable up to 70° and is always galvanized for a longer life.

In addition, the slide is equipped with a pendulum system, which ensures that the rubber maintains better contact with an uneven surface and thus delivers a cleaner result.



Standard

  • Galvanized
  • Pendulum rubber to mounting frame
  • Adjustable up to 70°
  • Rubber dimensions 400×40 and 500×50
VMSH – 1800 VMSH – 2200 VMSH – 2500 VMSH – 2500V VMSH – 2800V VMSH – 3200V
Loader Up to 2 ton Up to 2 ton Up to 2 ton Up to 6 ton Up to 6 ton Up to 6 ton
Working width in straight position /m 1,80 2,20 2,50 2,50 2,80 3,20
Rubber height /mm 400 400 400 500 500 500
Price (excl. VAT) On request On request On request On request On request On request

Options

Non-return valve (for loaders with open hydraulic centre position)
Adjustable edges
