STKH

loader For skid steer loader
loader For articulated loader
loader For telehandler
loader For tractor front loader
loader For big wheel loader
Max Pressure:
225 Bar
Suited for:
Straw, Hay
Loader brackets:
Bolted

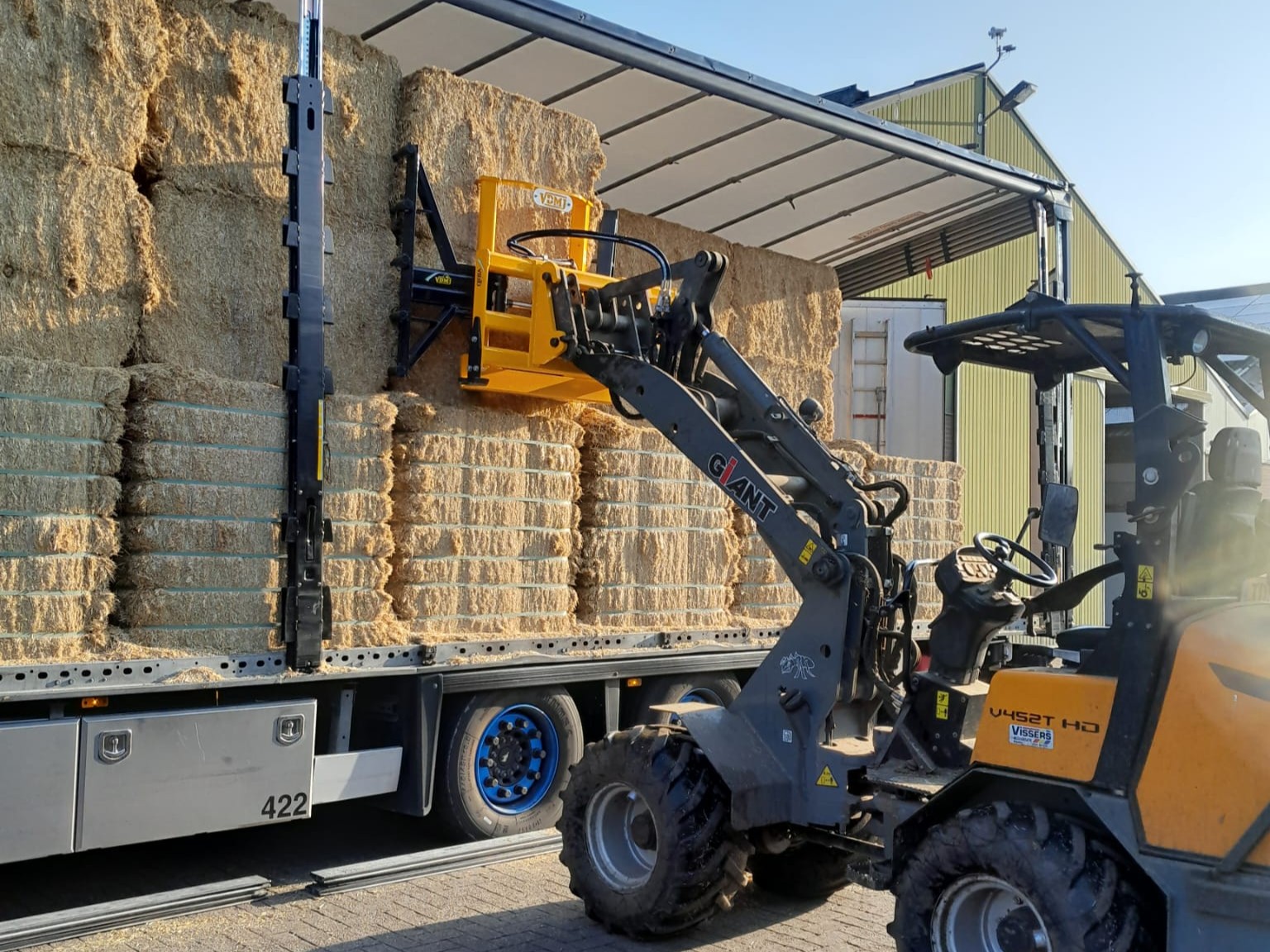

Hydraulic Bale Spike for round & square bales

The STKH bale spikes are available in 2 variants.

STKH 1100: This clamp has 5 tines in the bracket. It can handle 2 bales of 70cm or 90cm high as standard. This bale spike can optionally be equipped with option 3T, i.e. a tine bar with 3 long tines of 80cm is attached to the bottom of the clamp. The advantage of this is that 3 bales of 70cm can be carried instead of 2. (Number of bales per height -> see table)

STKH 1800: This clamp has 7 tines in the bracket. It can handle 3 bales of 70cm or 90cm high as standard. This bale spike can optionally be equipped with option 3T, i.e. a tine bar with 3 long tines of 80cm is attached to the bottom of the clamp. The advantage of this is that you can then carry 4 bales of 70cm instead of 3. (Number of bales per height -> see table)

Standard

  • Made of high-strength steel
  • Steel bushes provided in the hinged parts
  • 1 cylinder for the 2 arms, incl. throttle valve
  • 5 bent tines per bracket -> STKH 1100
  • 7 bent tines per bracket -> STKH 1800
STKH 1100

Without lower tine bar

 STKH 1100

With lower tine bar

 STKH 1800

Without lower tine bar

 STKH 1800

With lower tine bar
Number of tines per bracket 5 7
Center-Center between lower and upper teeth /m 1,10 1,80
Weight /kg 370 420 500 550
Number of cylinders 1 1
Number of square bales 70x120x240 cm 2 3 3 4
Number of square bales 90x120x240 cm 2 2 3 3
Number of square bales 120x120x240 cm 1 2 2 2
Number of round bales up to 200 cm diameter 2 2 2 2
Price (excl. VAT) On request On request On request On request
