WSB-140V

loader For skid steer loader
loader For articulated loader
loader For tractor front loader
Min oil flow:
35 L/Min
Max oil flow:
65 L/Min
Max Pressure:
210 Bar
Suited for:
Straw
Loader brackets:
Bolted

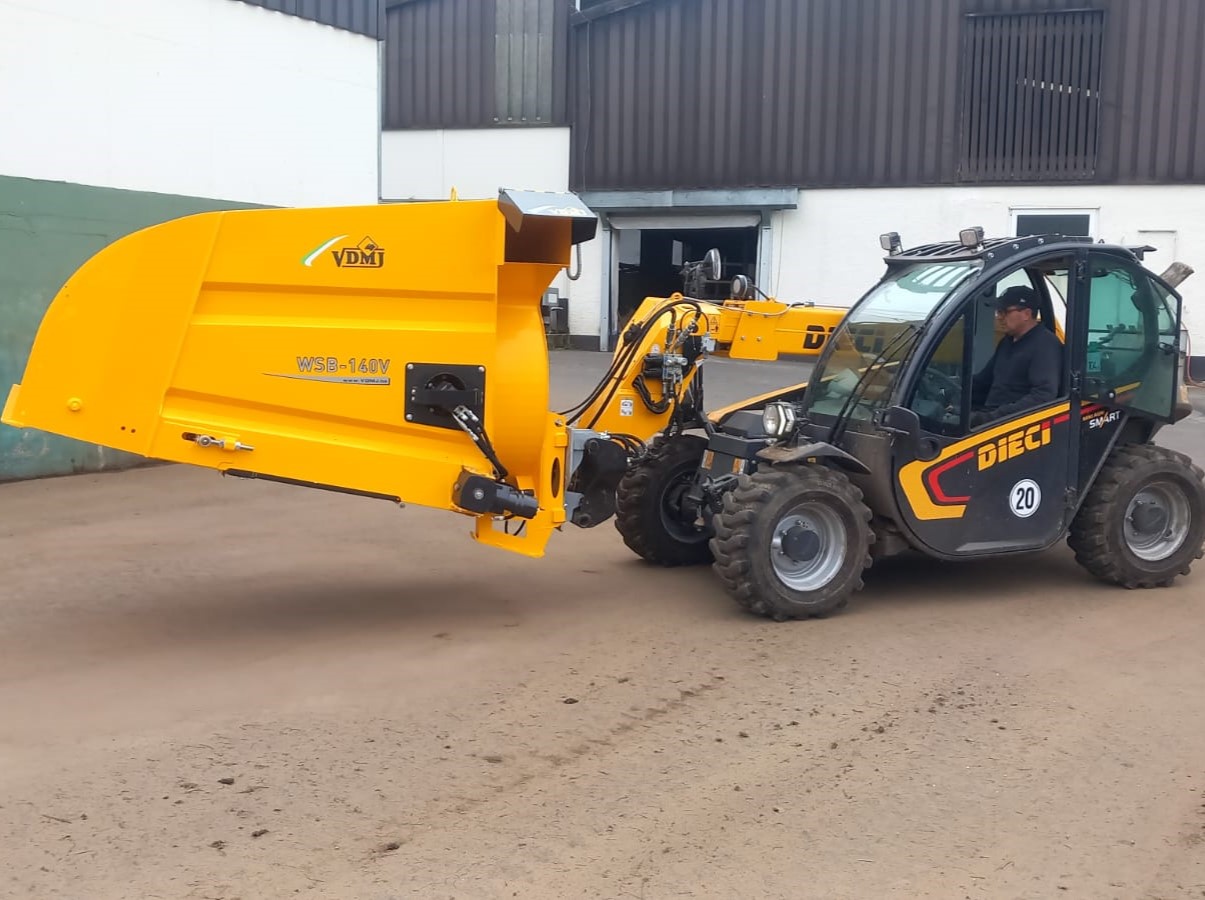

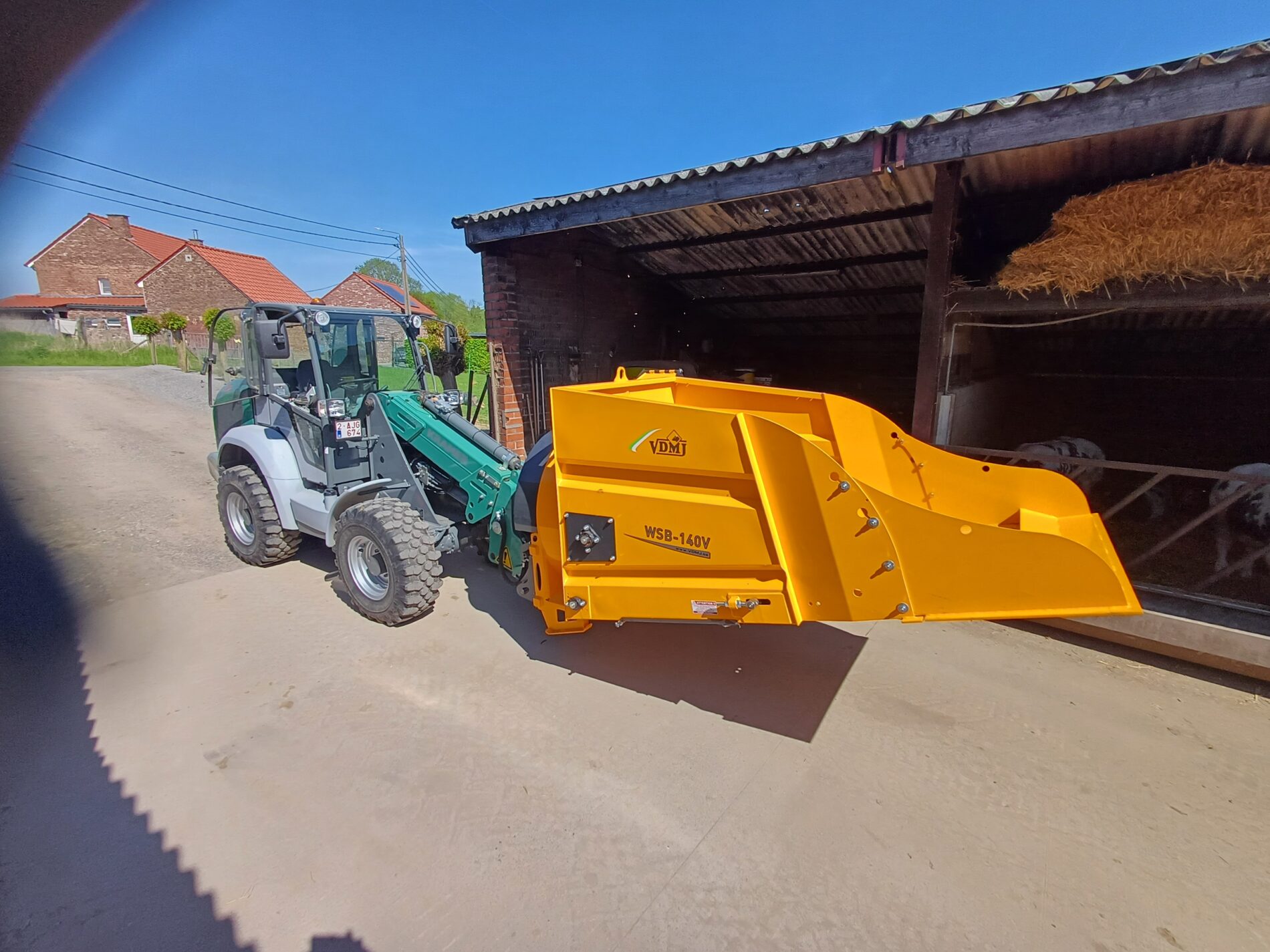

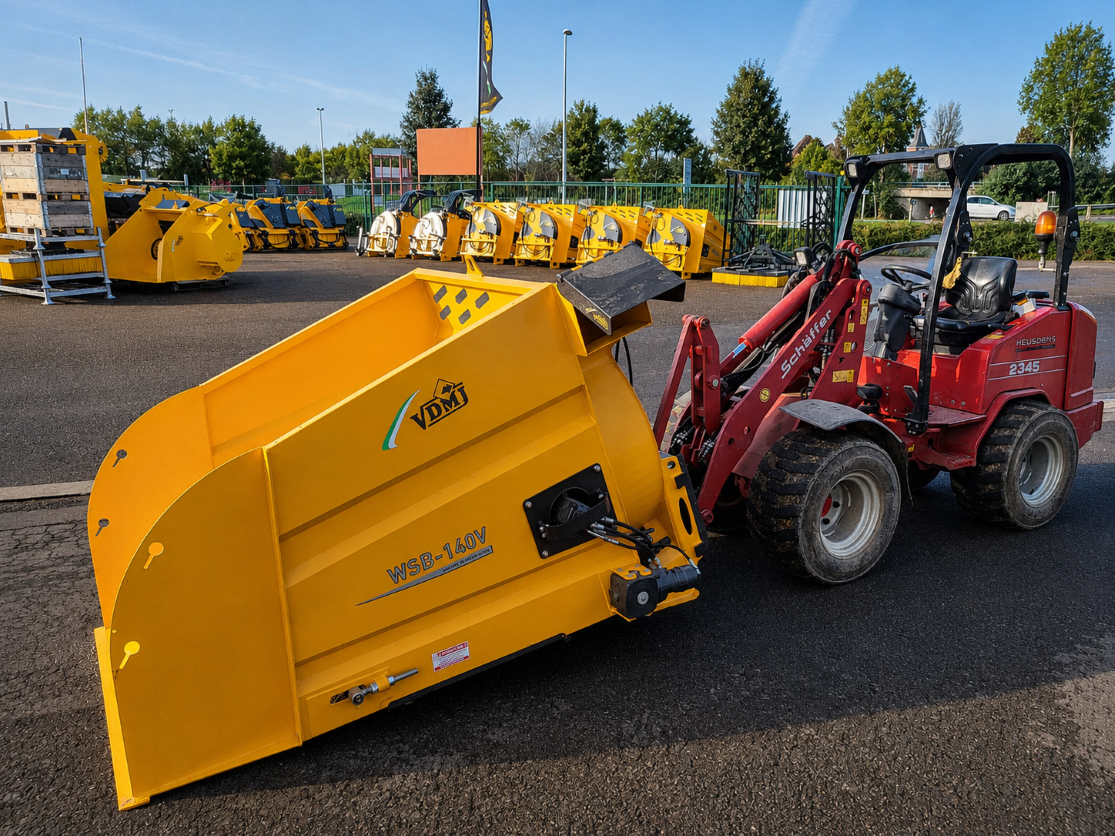

Mini Straw Blower for loaders over 1700kg

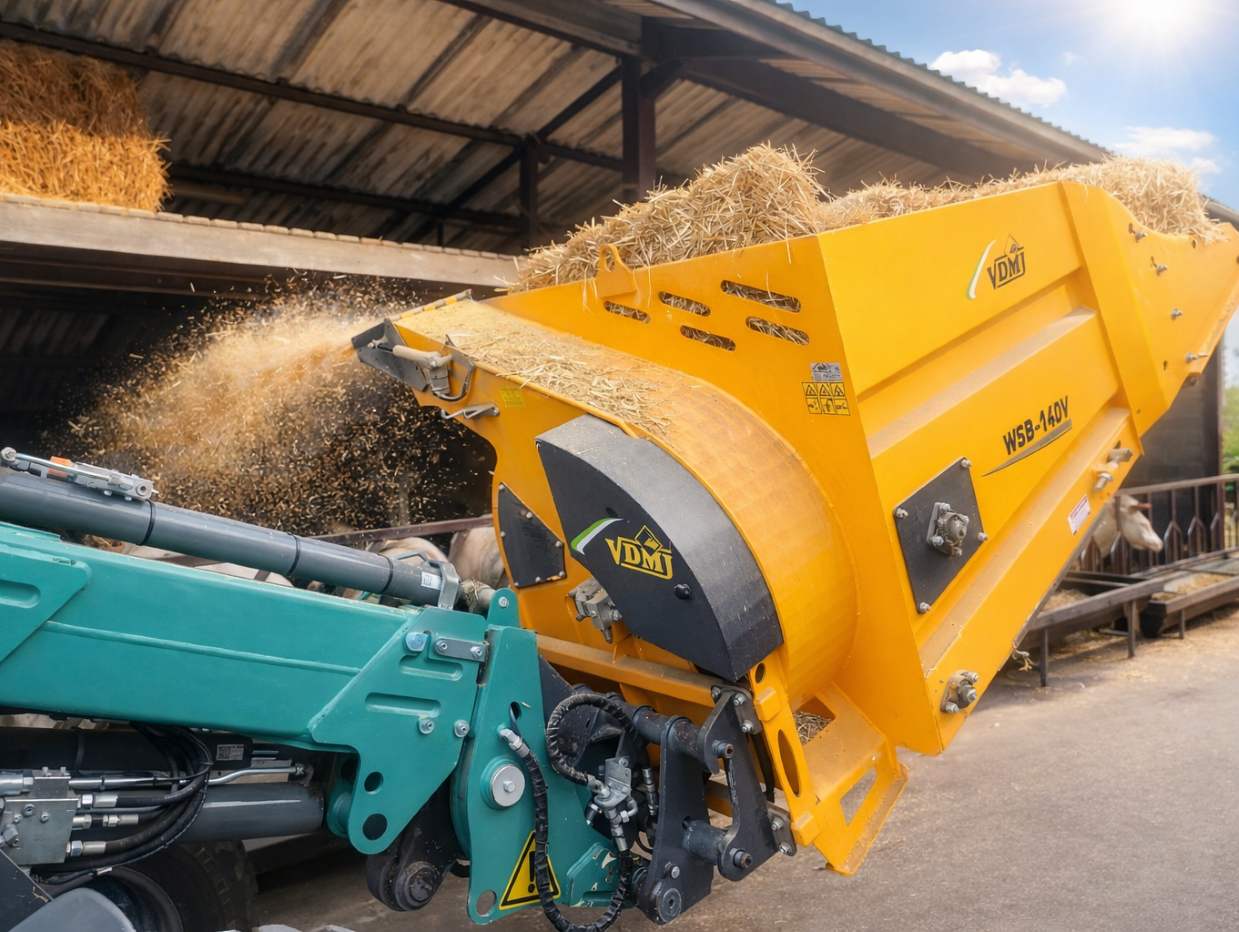

The WSB-140V is a mini straw blower that has been specially developed for small shovels, articulated loaders and skid steer loaders with a dead weight of above 2300 kg and a minimum oil flow rate of 35 l/min. Both square and round bales can be processed with the straw blower. This WSB-140V has a loading length of 1.40m and is standard equipped with a fixed blowing exhaust on the left side. With this exhaust, you can spread close to but also far (10-12m depending on the oil flow). The machine has a rotating floor chain with which you regulate the straw supply to the turbine. The entire operation of the straw blower is done via an electric joystick box in the cabin.

Standard

  • Standard with fixed straw exhaust on the left side

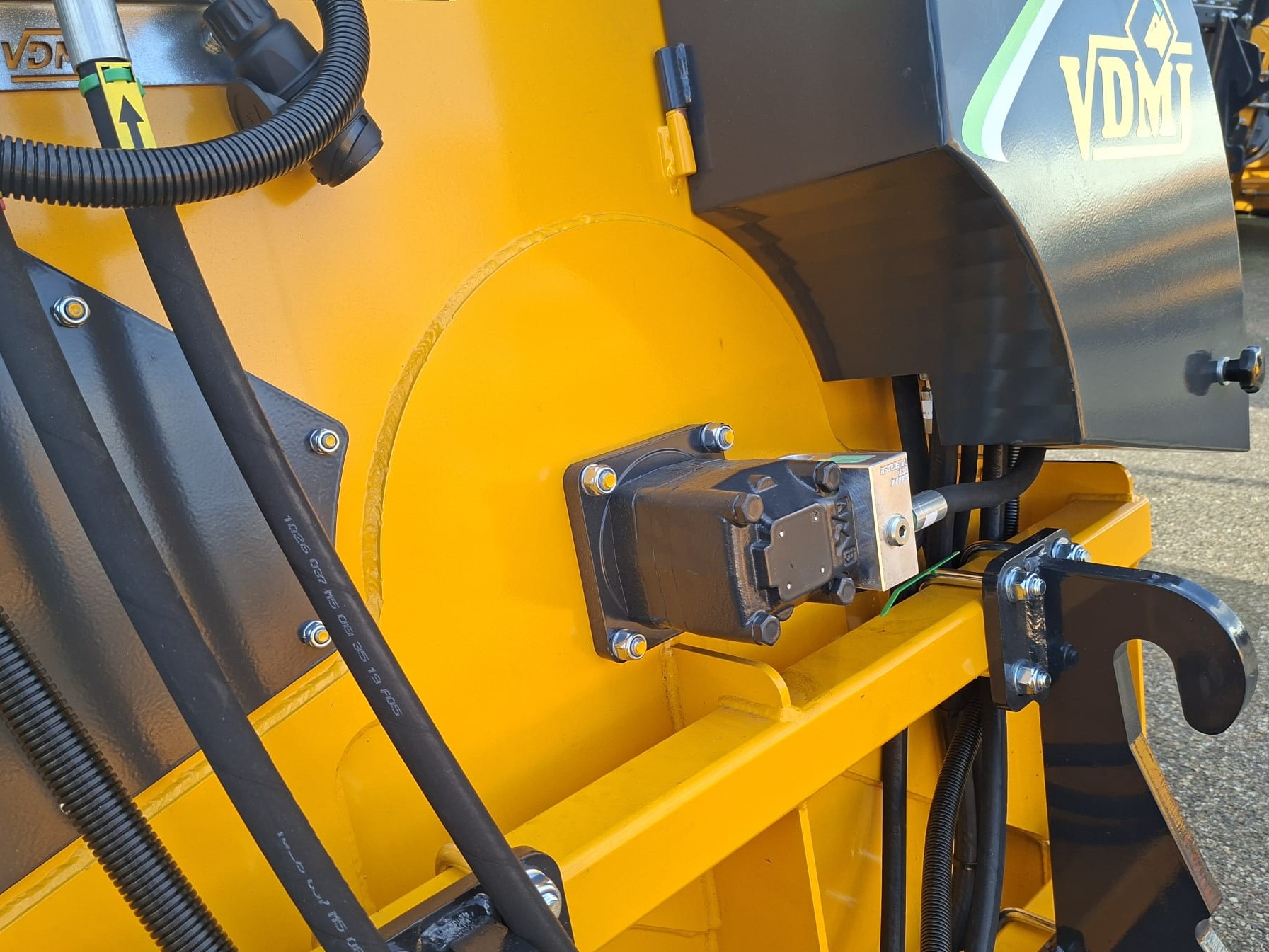

  • Hydraulically driven
  • Speed of the floor chain is infinitely adjustable
  • Electrical operation (joystick box)
Straw exhaust Fixed on left side
Width /m 1,52
Height /m 1,68
Length /m 2,45
Weight /kg 680
Max. dimensions round bales /m Ø 1,50
Max. dimensions square bales W x H x L /m 1,20×0,90×1,40
Blowing distance* /m +/- 12
Price (excl. VAT) On request

* Depending on oil flow rate and straw quality

Options

Fixed extension (load length will be 2.20m instead of 1,40m)
3 point linkage for tractor (hydraulic third point required)
