WSB-140Z
For skid steer loader
For articulated loader
For tractor front loader
35 L/Min
65 L/Min
210 Bar
Straw
Bolted

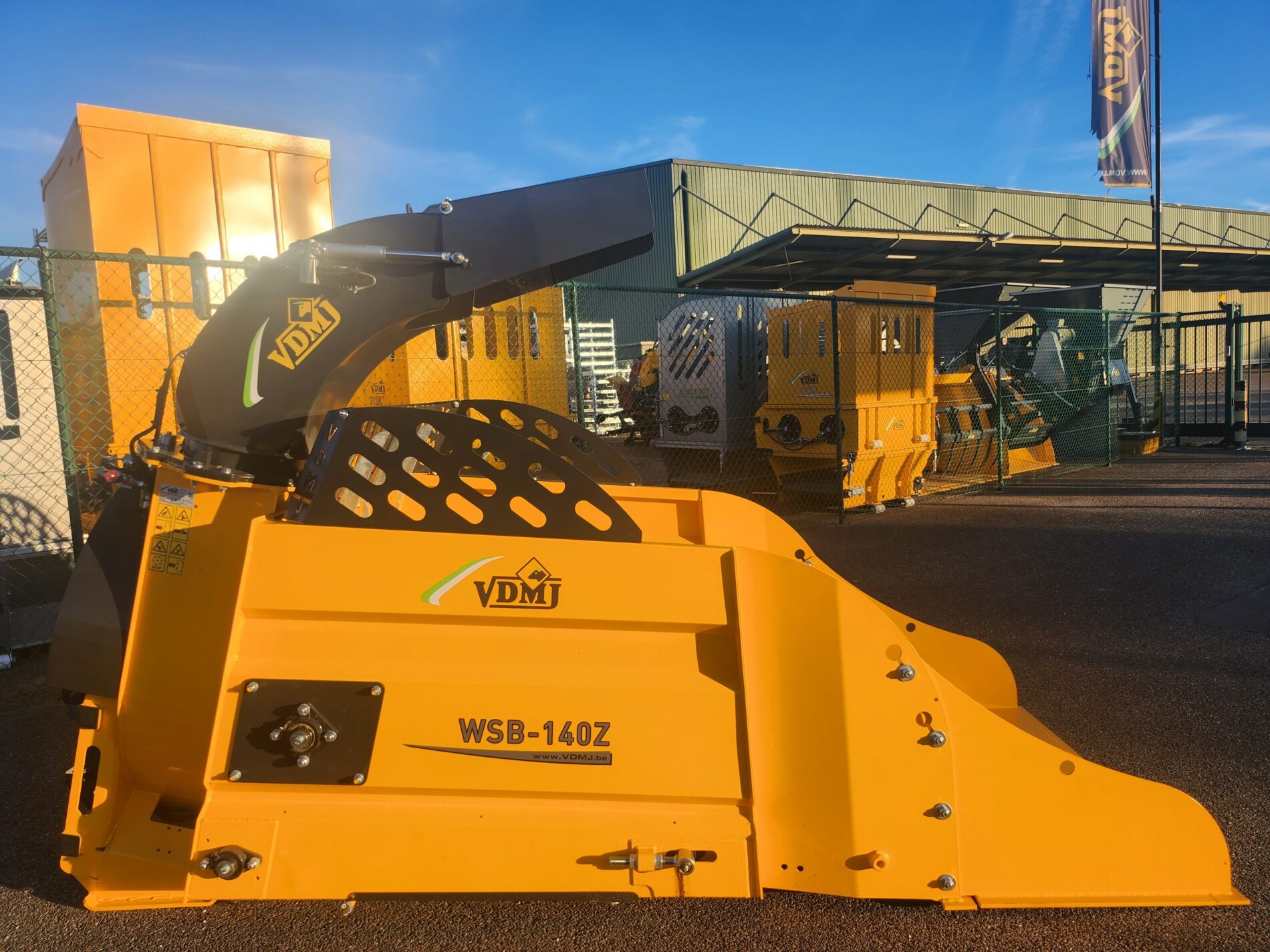

Mini Straw Blower for loaders over 1700kg

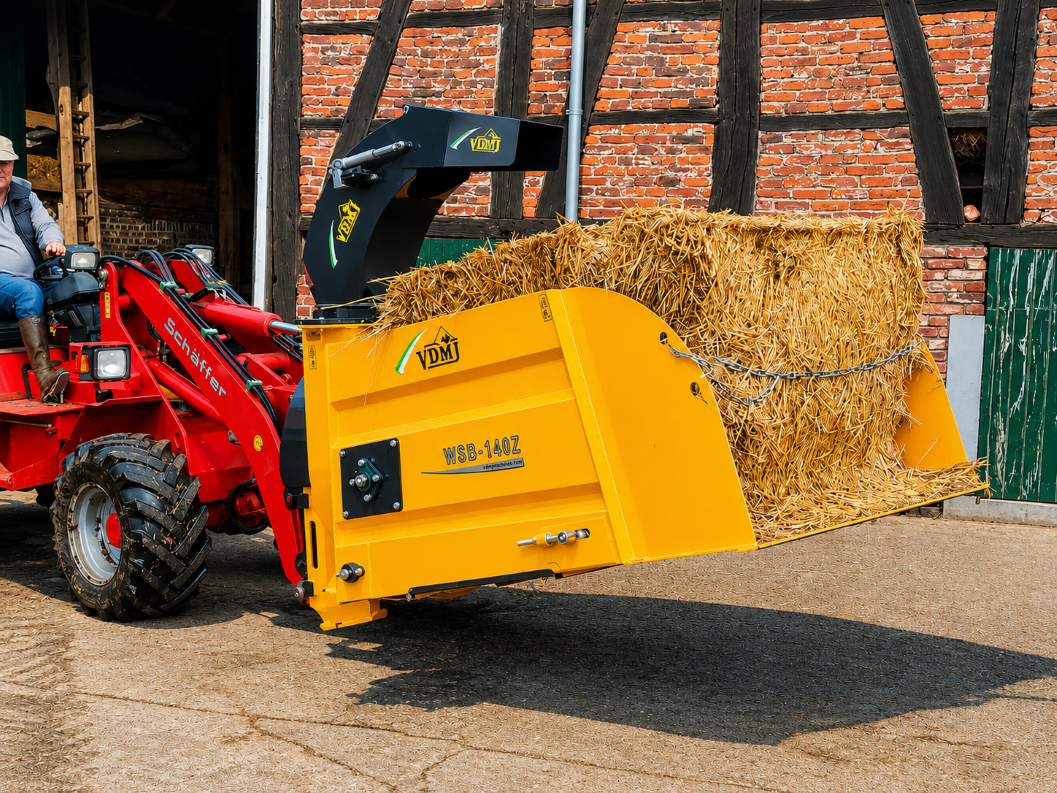

The WSB-140Z is a mini straw blower that has been specially developed for small shovels, articulated loaders and skid steer loaders with a dead weight of above 2300 kg and a minimum oil flow rate of 35 l/min. Both square and round bales can be processed with the straw blower. This WSB-140Z has a loading length of 1.40m. The loading length can optionally be increased to 2.20m by means of a hydraulic frontdoor at the front of the machine. This door can be opened and closed hydraulically, which makes the straw blower compact but still has a large loading capacity. The WSB-140Z is equipped with a 300° rotating exhaust. This makes it possible to spread straw near but also far (10-12m depending on the oil flow) and this over a range of 300°. The machine also has a rotating floor chain to control the flow of straw to the turbine. The entire operation of the straw blower is done via an electric joystick box in the cabin.
Standard
- Standard with 300° rotating straw exhaust
- Hydraulically driven
- Speed of the floor chain is infinitely adjustable
- Electrical operation (joystick box)
| Straw exhaust | 300° rotating |
| Width /m | 1,52 |
| Height /m | 1,85 |
| Length /m | 2,45 |
| Weight /kg | 680 |
| Max. dimensions round bales /m | Ø 1,50 |
| Max. dimensions square bales W x H x L /m | 1,20×0,90×1,40 |
| Blowing distance* /m | +/- 12 |
| Price (excl. VAT) | On request |
* Depending on oil flow rate and straw quality
Options
 | Hydraulic extension (load length will be 2.20m instead of 1,40m) |
 | Fixed extension (load length will be 2.20m instead of 1,40m) |
 | Raised front and sides |
 | 3 point linkage for tractor (hydraulic third point required) |
